Sensor

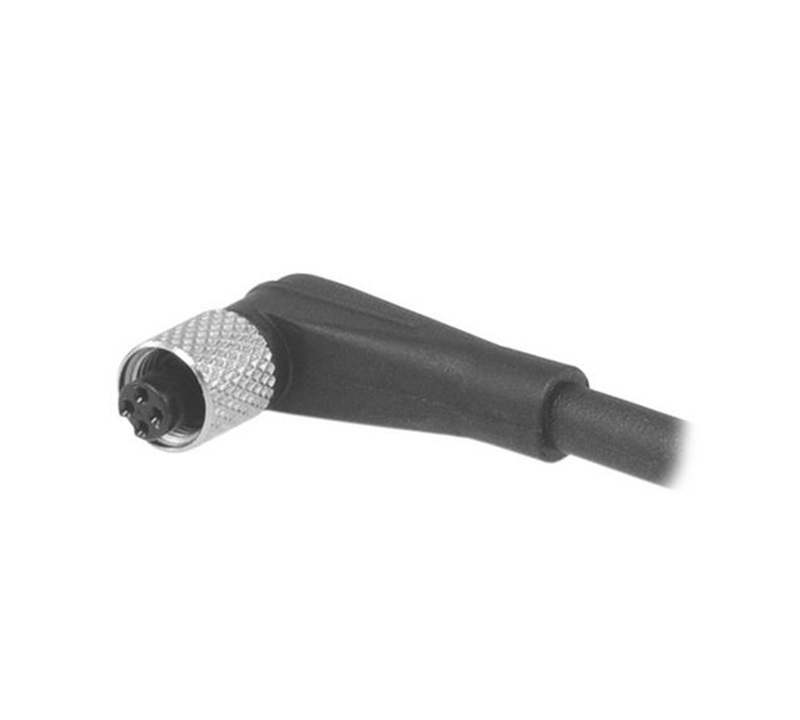

Connector M5 x 0,5 with attached PUR-cable Baumer ESW 05SP0200
| General Data |
| Molded Body and Insert |
PUR |
| Cap-Nut |
Brass nickel plated |
| Cable |
| Strand Type |
3 x 0.14 mm² (18 x 0.1) |
| Strand Insulation |
PVC |
| Insulation |
PUR, black, D = Ø 3.0 ±0.2 |
| Bending Radius Min. |
8 mm (fixed) |
| Electrical Data |
| Voltage Supply |
125 VDC |
| Supply Current Max. |
1 A (40 °C) |
| Ambient Conditions |
| Operating Temperature |
-15 ... +80 °C (fixed) |
| Protection Class |
IP 67 (threaded on) |
| Data for Dynamic Application |
| Bending Radius |
15 mm |
| Operating Temperature |
-5 ... +80 °C |
