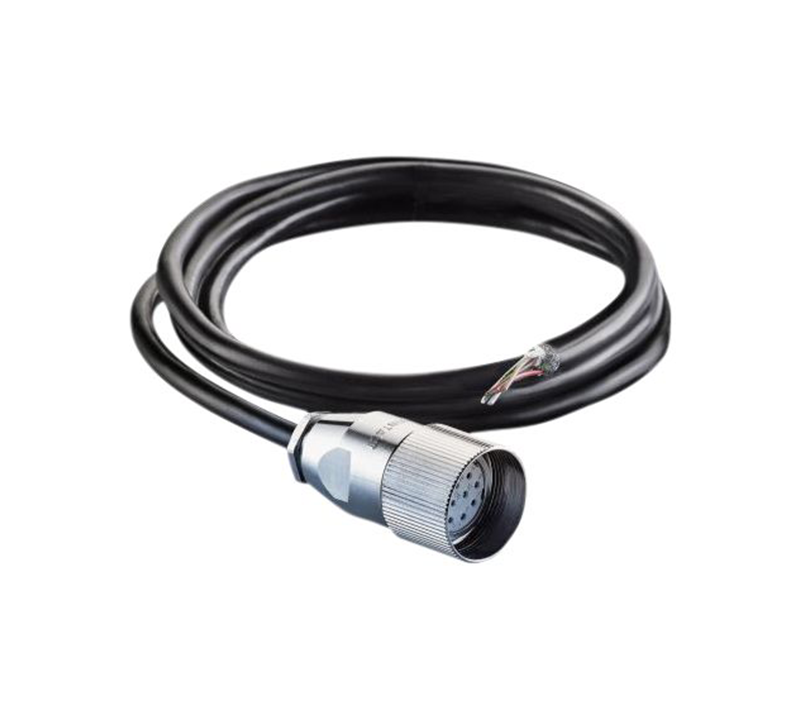

Cordset Baumer 11100430
- Connection cable shielded with female connector M23, open cable end
- Cable (4x2x0.14 mm²)
- 12 pin version
- Cable coating PVC
- Colour code according to DIN 47100
- UL/CSA certification
- Temperature -40...+85 °C (fixed installation)
| Part number |
| 10164705 |
Connector M23, 12-pin |
| 11095302 |
Connection cable 1 m shielded with female connector M23, 12-pin |
| 11100408 |
Connection cable 2 m shielded with female connector M23, 12-pin |
| 11100430 |
Connection cable 5 m shielded with female connector M23, 12-pin |
| 11100431 |
Connection cable 10 m shielded with female connector M23, 12-pin |
| Suitable for |
| EIL580 - blind hollow shaft, EIL580 - clamping flange, EIL580 - synchro flange, EIL580 - through hollow shaft, EIL580P - blind hollow shaft, EIL580P - clamping flange, EIL580P - synchro flange, EIL580P - through hollow shaft |
| Terminal assignment |
| Connector M23 |
Core colour |
| Pin 1 |
pink |
| Pin 2 |
– |
| Pin 3 |
blue |
| Pin 4 |
red |
| Pin 5 |
green |
| Pin 6 |
yellow |
| Pin 7 |
– |
| Pin 8 |
grey |
| Pin 9 |
– |
| Pin 10 |
white |
| Pin 11 |
– |
| Pin 12 |
brown |
| Housing |
Shield |
