Sensor
| Part number | |
| 10164705 | Connector M23, 12-pin |
| 11095302 | Connection cable 1 m shielded with female connector M23, 12-pin |
| 11100408 | Connection cable 2 m shielded with female connector M23, 12-pin |
| 11100430 | Connection cable 5 m shielded with female connector M23, 12-pin |

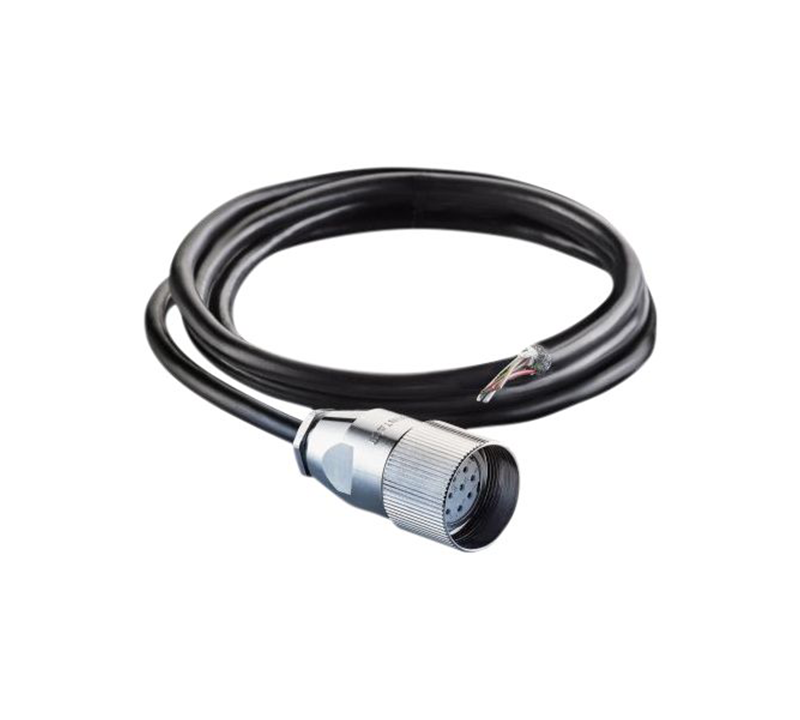

| 11100431 | Connection cable 10 m shielded with female connector M23, 12-pin |
| Suitable for | |
| EIL580 - blind hollow shaft, EIL580 - clamping flange, EIL580 - synchro flange, EIL580 - through hollow shaft, EIL580P - blind hollow shaft, EIL580P - clamping flange, EIL580P - synchro flange, EIL580P - through hollow shaft |
|
| Terminal assignment | |
| Connector M23 | Core colour |
| Pin 1 | pink |
| Pin 2 | - |
| Pin 3 | blue |
| Pin 4 | red |
| Pin 5 | green |
| Pin 6 | yellow |
| Pin 7 | - |
| Pin 8 | grey |
| Pin 9 | - |
| Pin 10 | white |
| Pin 11 | - |
| Pin 12 | brown |
| Housing | Shield |
