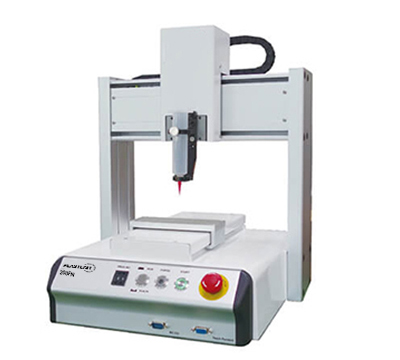

Desktop Dispensing Robot ST200
Features
- Dot, Lines, Arc etc. and 3D dispensing path is available.
- 100 programs, 4000 points per program.
- A hand-held Teach Pendant is provided for simple and intuitive programming functions.
- Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids.
- Windows SRE software is available for CAD file input (optional).
Specification
※Specification and Pictures are for reference only, call our sales to have latest data
| Model | ST200 | |||
|---|---|---|---|---|
| Working Area X / Y / Z (mm) | 200 / 200 / 50 | |||
| Load Worktable Y-Axis / Z-Axis | 5 kg / 3 kg | |||
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 500 / 300 | |||
| Resolution | 0.001 mm / Axis | |||
| Repeatability | +/- 0.01 mm / Axis | |||
| Data Memory Capacity | 100 programs 、 4000 points / program | |||
| Display | TFT | |||
| Drive System / Stepping Motor | Micro stepping motor | |||
| Motion Control | PTP & CP | |||
| Linear / Circular Interpolation | 3 axis | |||
| Teaching Method | Teach pendant | |||
| I/O Signals | 8 Inputs / 8 Outputs | |||
| Power Supply | 100 ~ 230 VAC , 200 W | |||
| Working Temperature | 0 - 40°C | |||
| Relative Humidity (no condensation) | 20 - 90% No condensation | |||
| Dimensions (WxDxH mm) | 382 x 374 x 485 | |||
| Robot Weight | 23 kg | |||
※Specification and Pictures are for reference only, call our sales to have latest data
