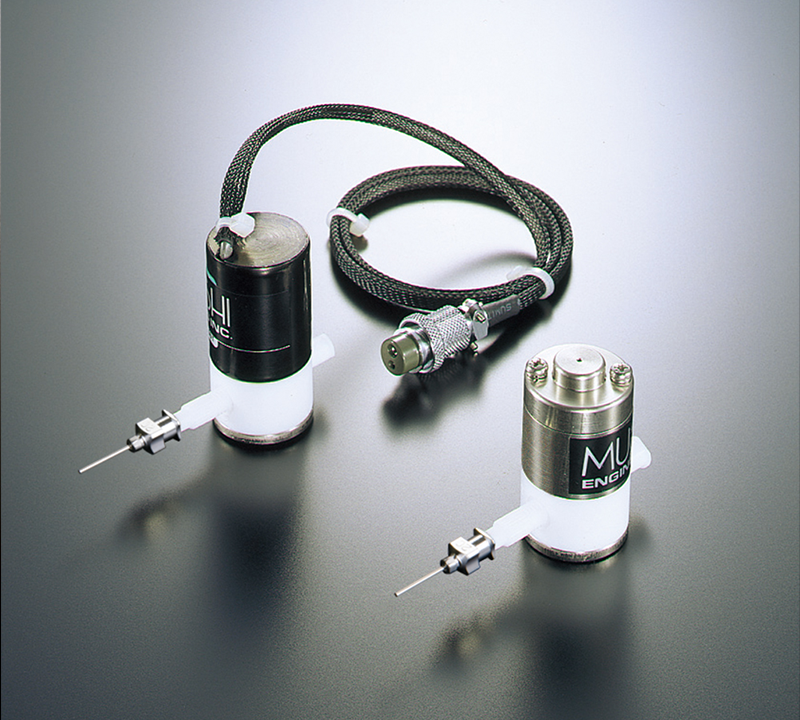

Diaphragm valve Musashi DCV-2 DCV-3

	Electromagnetic type	Electromagnetic type stroke adjustment attached	Pneumatic type	Pneumatic type stroke adjustment attached
Model	DCV-2-VT	DCV-2N-VT	DCV-3	DCV-3N
Minimum dispensing amount	—	10 µL	—	10 µL
Compatible viscosity	Up to 1 Pa·s	Up to 1 Pa·s	Up to 1 Pa·s	Up to 1 Pa·s
Applicable fluid materials	Low viscosity fluids (solutions, chemicals, etc.)	Low viscosity fluids (solutions, chemicals, etc.)	Low viscosity fluids (solutions, chemicals, etc.)	Low viscosity fluids (solutions, chemicals, etc.)
Control air supply pressure range	—	—	0.3 to 0.6 MPa	0.3 to 0.6 MPa
Fluid material supply pressure range	Max. 0.2 Mpa	Max. 0.2 Mpa	Max. 0.5 Mpa	Max. 0.5 Mpa
Fluid intake port	M6	M6	M6	M6
Fluid dispensing port	M6	M6	φ4 inner diameter tube connection	φ4 inner diameter tube connection
Control air	—	—	—	φ4 outer diameter tube connection
Operating temperature range	0 to 80°C	0 to 80°C	-5 to 80°C	-5 to 80°C
Wetted part material	Fluorine resin	Fluorine resin	Fluorine resin	Fluorine resin
Weight	130 g	140 g	120 g	140 g

Note:
1. Fittings for the diaphragm valve are sold separately. Please contact our sales office.
2. The dose volumes, material types and viscosities shown in the specifications above are only for reference.
