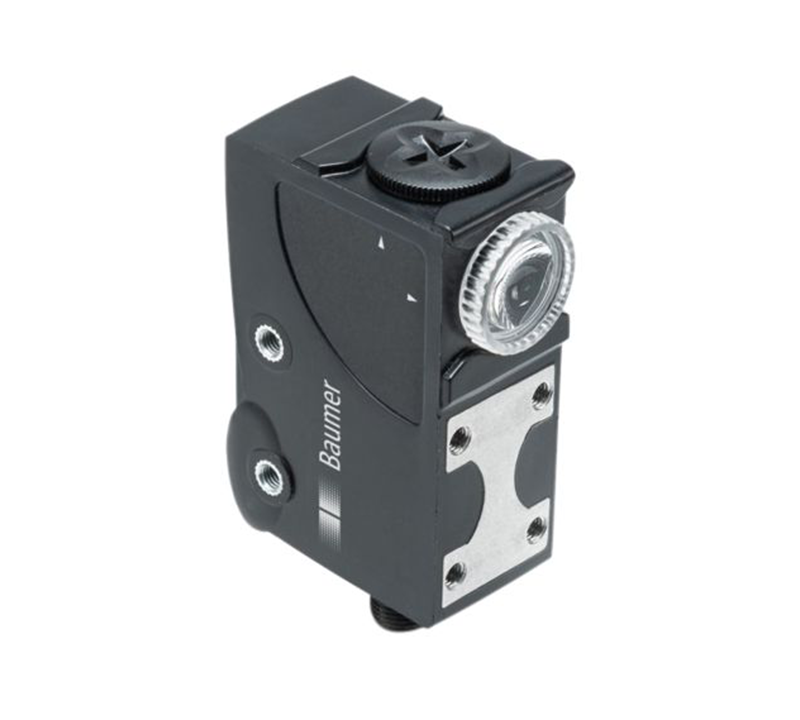

Diffuse contrast sensors Baumer OC50.CC-QL1T.72O
- RGB LED
- Intiuitive teach-in
- 20 ms delay activatable
- Optional lenses for distances up to 22 mm
| General Data |
| Type |
Diffuse contrast sensor |
| Light Source |
LED red / green / blue |
| Sensing Distance Tw |
9 mm ±3 mm |
| Power on Indication |
LED green |
| Output Indicator |
LED yellow |
| Sensitivity Adjustment |
Teach-in |
| Distance to Focus |
9 mm |
| Wave Length |
465 nm, 520 nm, 630 nm |
| Beam Type |
Line, vertical |
| Beam Height |
1.5 mm |
| Beam Width |
5 mm |
| Electrical Data |
| Response Time / Release Time |
< 0.033 ms |
| Jitter |
< 0.025 ms |
| Voltage Supply Range +Vs |
10 VDC ... 30 VDC |
| Current Consumption Typ. |
50 mA (@ 24 VDC) |
| Voltage Drop Vd |
< 2 VDC |
| Output Function |
Light / dark operate |
| Output Circuit |
PNP, NPN |
| Output Current |
< 100 mA |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Mechanical Data |
| Width / Diameter |
31 mm |
| Height / Length |
53 mm |
| Depth |
80.1 mm |
| Type |
Rectangular |
| Housing Material |
Plastic (ABS) |
| Front (Optics) |
PMMA |
| Connection Types |
Connector M12 4 pin |
| Ambient Conditions |
| Protection Class |
IP 67 |
| Operating Temperature |
-10 ... +55 °C |
| Storage Temperature |
-20 ... +70 °C |
