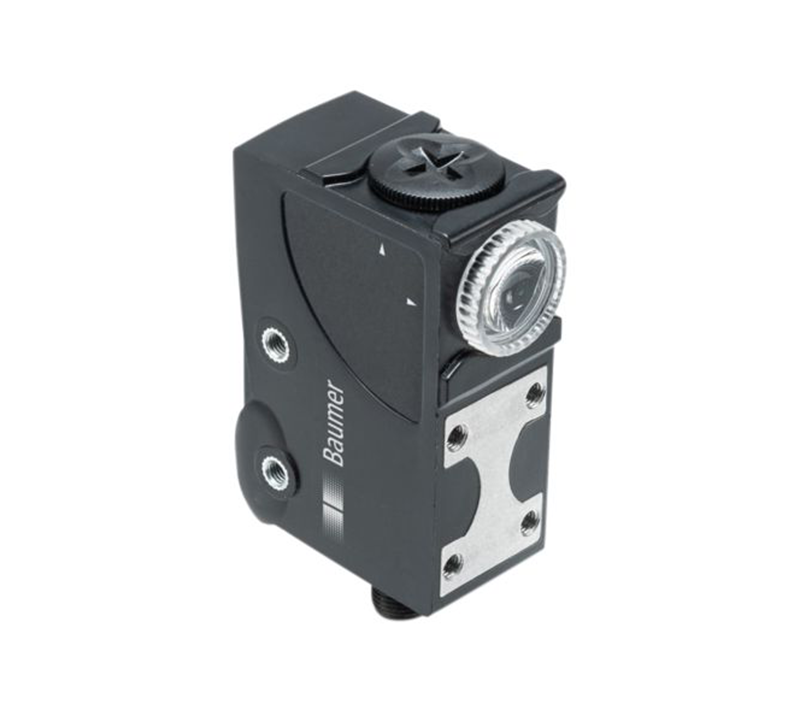

Sensor
| General Data | |
|---|---|
| Type | Diffuse contrast sensor |
| Light source | LED red / green / blue |
| Sensing distance Tw | 9 mm ±3 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Distance to focus | 9 mm |
| Wave length | 465 nm 520 nm 630 nm |
| Beam type | Line, vertical |
| Beam height | 1.5 mm |
| Beam width | 5 mm |
| Electrical Data | |
| Response time / release time | < 0.033 ms |
| Jitter | < 0.025 ms |
| Voltage supply range +Vs | 10 VDC ... 30 VDC |
| Current consumption typ. | 50 mA (@ 24 VDC) |
| Voltage drop Vd | < 2 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull Analog 0 ... 5 VDC, 2.2 V on white target 90% ± 10% |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Width / diameter | 31.9 mm |
| Height / length | 60.2 mm |
| Depth | 79 mm |
| Type | Rectangular |
| Housing material | Aluminum |
| Front (optics) | PMMA |
| Connection types | Connector M12 5 pin, rotatable |
| Ambient Conditions | |
| Protection class | IP 67 |
| Operating temperature | -10 ... +55 °C |
| Storage temperature | -20 ... +70 °C |
