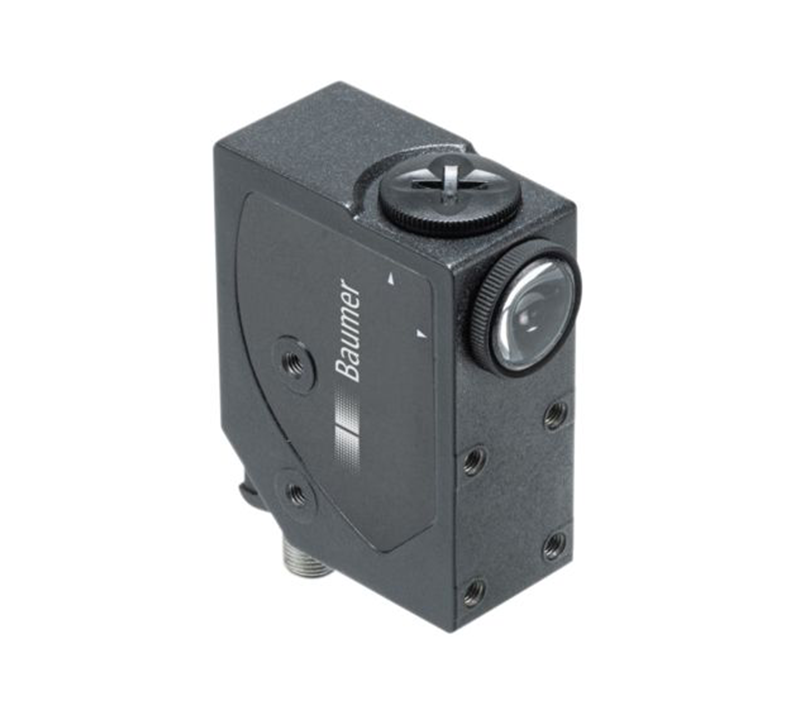

Diffuse contrast sensors Baumer OC60.CU-DLMT.7AF
- Reliable detection of fluorescent substances
- Adjustable sensitivity
- Analog output
- 20 ms delay activatable
- Connector rotatable to 5 positions
- Pre-mounted 9 mm lens
- Optional lenses for longer distances
| General Data | |
|---|---|
| Type | Luminescence sensor |
| Light source | UV LED |
| Sensing distance Tw | 10 mm … 20 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Distance to focus | 10 mm |
| Wave length | 375 nm |
| Beam type | Line, vertical |
| Beam height | 8 mm |
| Beam width | 2 mm |
| Electrical Data | |
| Response time / release time | < 0.25 ms |
| Voltage supply range +Vs | 15 VDC … 30 VDC |
| Current consumption typ. | 50 mA (@ 24 VDC) |
| Voltage drop Vd | < 2 VDC |
| Output function | Light operate |
| Output circuit | PNP NPN Analog 0.75 … 5.5 VDC |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Width / diameter | 31.9 mm |
| Height / length | 60.2 mm |
| Depth | 79 mm |
| Type | Rectangular |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 5 pin, rotatable |
| Ambient Conditions | |
| Protection class | IP 67 |
| Operating temperature | -10 … +55 °C |
| Storage temperature | -20 … +70 °C |
