Sensor

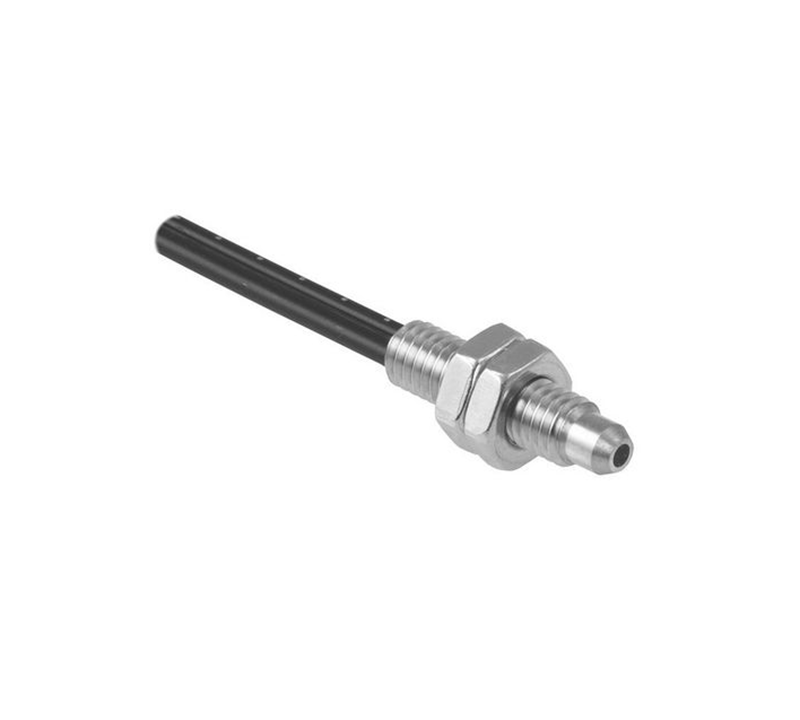

Diffuse sensors fiber optics Baumer FUE 200C1003
| General Data |
| Particular Characteristics |
Standard |
| Type |
Diffuse sensors |
| Sensing Distance Tw |
1 ... 300 mm |
| Response Time / Release Time |
0.05 ... 5 ms |
| Type of Head (Fiber Optic Cable) |
Cylindrical threaded (axial) |
| Width / Diameter (Head) |
6 mm |
| Height / Length (Head) |
24 mm |
| Material (Head) |
Brass |
| Bending Radius |
15 mm |
| Cable Jacket Diameter |
2.2 mm |
| Material Cable Jacket |
PE |
| Material (Fiber Optic Cable) |
Plastic |
| Length (Fiber Optic Cable) |
2000 mm |
| Operating Temperature |
-30 ... +70 °C |
