Sensor

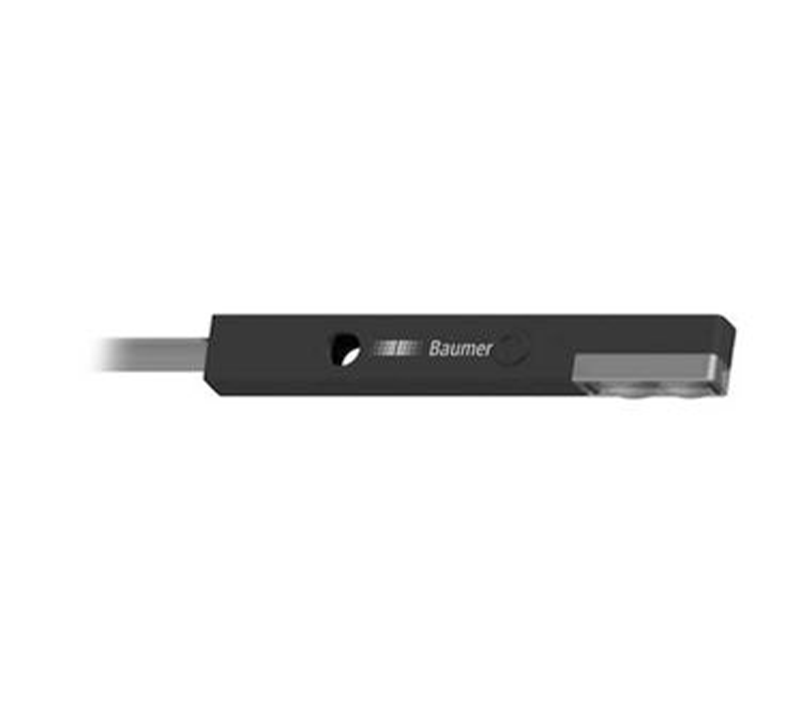

Diffuse sensors with background suppression Baumer FHDK 04G6101/KS35A
| general data |
| type |
background suppression |
| light source |
pulsed point source LED |
| sensing distance Tw |
30 mm ±2 mm |
| alignment / soiled lens indicator |
flashing light indicator |
| light indicator |
LED yellow |
| wave length |
660 nm |
| beam diameter |
2 mm |
| suppression of reciprocal influence |
yes |
| electrical data |
| response time / release time |
< 0.5 ms |
| voltage supply range +Vs |
11 ... 30 VDC |
| current consumption max. (no load) |
30 mA |
| current consumption typ. |
20 mA |
| voltage drop Vd |
< 2 VDC |
| output function |
light operate |
| output circuit |
push-pull |
| output current |
< 50 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes, supply only |
| mechanical data |
| width / diameter |
4 mm |
| height / length |
44.8 mm |
| depth |
6.2 mm |
| type |
rectangular |
| housing material |
plastic (ASA) |
| front (optics) |
PMMA |
| connection types |
flylead connector M8 4 pin, L=200 mm |
| ambient conditions |
| operating temperature |
-10 ... +50 °C |
| protection class |
IP 65 |
