Sensor

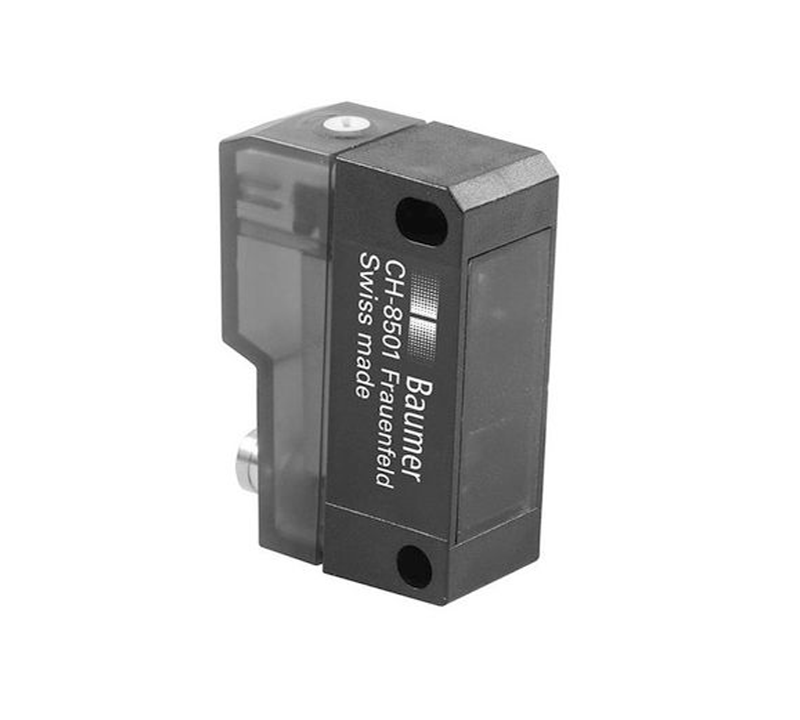

Diffuse sensors with background suppression Baumer FHDK 14P5101/S35A
| general data |
| type |
background suppression |
| light source |
pulsed red laser diode |
| sensing distance Tw |
20 ... 350 mm |
| sensing range Tb (at Tw max.) |
20 ... 350 mm |
| sensing range Tb (at Tw min.) |
5 ... 20 mm |
| repeat accuracy |
< 0.2 mm at laser focus |
| power on indication |
LED green |
| light indicator |
LED yellow |
| sensing distance adjustment |
mechanical, 9 turn |
| laser class |
2 |
| distance to focus |
115 mm |
| wave length |
650 nm |
| electrical data |
| response time / release time |
< 0.5 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
35 mA |
| current consumption typ. |
25 mA |
| voltage drop Vd |
< 2.2 VDC |
| output function |
light / dark operate |
| output circuit |
PNP |
| output current |
< 100 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
14.8 mm |
| height / length |
43 mm |
| depth |
31 mm |
| type |
rectangular |
| housing material |
plastic (ASA, MABS) |
| front (optics) |
PMMA |
| connection types |
connector M8 4 pin |
| ambient conditions |
| operating temperature |
-10 ... +50 °C |
| protection class |
IP 67 |
