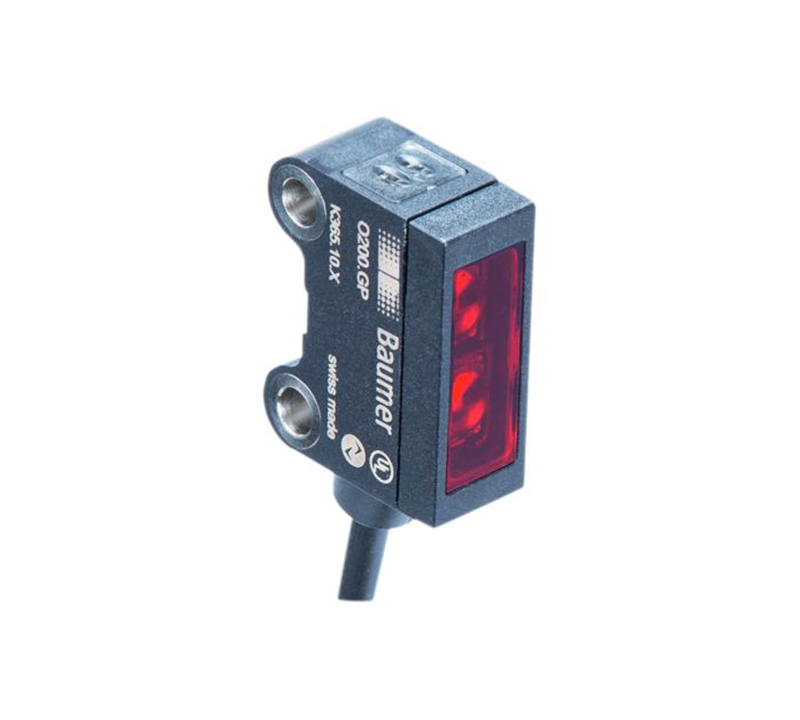

Sensor
| General Data | |
|---|---|
| Type | Background suppression |
| Light source | Pulsed PinPoint LED |
| Sensing distance Tw | 20 ... 120 mm |
| Sensing range Tb | 3 ... 132 mm |
| Smallest object recognizable typ. | 0,25 mm at 40 mm |
| Alignment / soiled lens indicator | Flashing output indicator |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | Teach-in and IO-Link |
| Wave length | 644 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1,5° |
| Electrical Data | |
| Response time / release time | < 0,25 ms (High Speed Mode) |
| Voltage supply range +Vs | 10 ... 30 VDC |
| Current consumption max. (no load) | 40 mA (@ 10 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Voltage drop Vd | < 2 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | < 50 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Width / diameter | 8 mm |
| Height / length | 25,1 mm |
| Depth | 15,8 mm |
| Type | Rectangular |
| Mechanical mounting | Sleeve smooth (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics | PVC / PVC 4 x 0,08 mm² |
| Ambient Conditions | |
| Operating temperature | -25 ... +50 °C |
| Protection class | IP 67 |
| Communications Interface | |
| Baud rate | 230,4 kBaud (COM 3) |
| Adjustable parameters | Switching point Switching hysteresis Time filters LED status indicators Output logic Counter Operation mode Deactivate the sensor element Find Me function Teach-in mode |
| IO-Link port type | Class A |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = SSC1 (presence) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 16-31 = 16 Bit measurement |
| Interface | IO-Link V1.1 |
| Additional data | Excess gain Operating cycles Device temperature |
| Cycle time | ≥ 0,6 ms |
