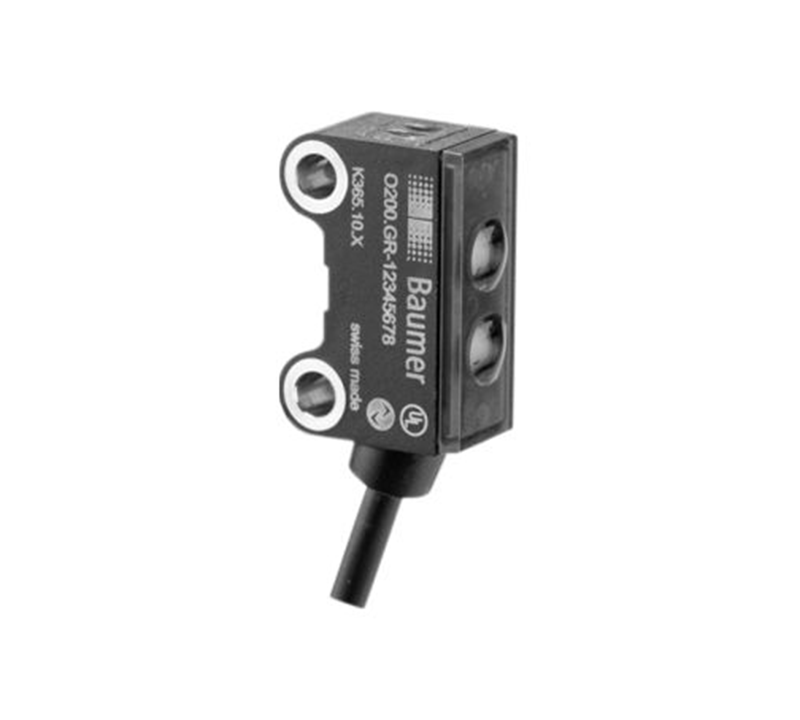

Diffuse sensors with background suppression Baumer O200.GR-11212585
| General data |
| Type |
background suppression |
| Light source |
pulsed red LED |
| Sensing distance Tw |
50 mm |
| Sensing range Tb |
7 ... 50 mm |
| Smallest object recognizable typ. |
0,25 mm at 30 mm |
| Alignment / soiled lens indicator |
flashing output indicator |
| Power on indication |
LED green |
| Output indicator |
LED yellow |
| Sensing distance adjustment |
no |
| Wave length |
644 nm |
| Suppression of reciprocal influence |
yes |
| Alignment optical axis |
< 1,5° |
| Electrical data |
| Response time / release time |
< 1 ms |
| Voltage supply range +Vs |
10 ... 30 VDC |
| Current consumption max. (no load) |
20 mA (@ 30 VDC) |
| Current consumption typ. |
16 mA (@ 24 VDC) |
| Voltage drop Vd |
< 2 VDC |
| Output function |
light / dark operate |
| Output circuit |
PNP complementary |
| Output current |
< 50 mA |
| Short circuit protection |
yes |
| Reverse polarity protection |
yes |
| Mechanical data |
| Width / diameter |
8 mm |
| Height / length |
25,1 mm |
| Depth |
14,1 mm |
| Type |
rectangular |
| Mechanical mounting |
sleeve smooth (stainless steel) |
| Housing material |
plastic (ASA, PMMA) |
| Front (optics) |
PMMA |
| Connection types |
flylead connector M8 4 pin, L=200 mm |
| Cable characteristics |
PVC / PVC 4 x 0,08 mm² |
| Ambient conditions |
| Operating temperature |
-25 ... +50 °C |
| Protection class |
IP 67 |
