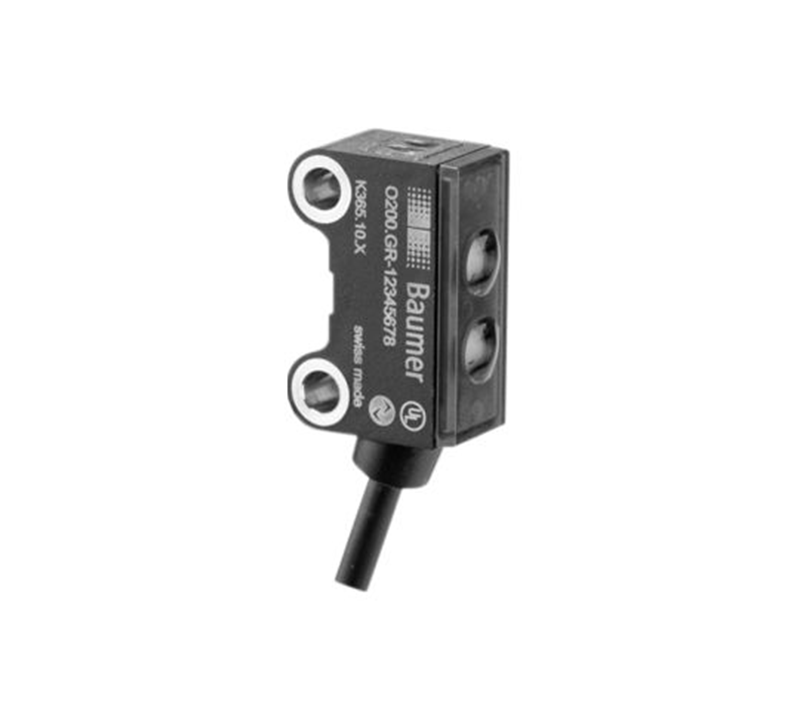

Sensor
| General data | |
|---|---|
| Type | background suppression |
| Version | fixed focus |
| Light source | pulsed red LED |
| Sensing distance Tw | 8 ... 13,5 mm |
| Sensing range Tb | 3 ... 15 mm |
| Smallest object recognizable typ. | 0,05 mm at 10 mm |
| Alignment / soiled lens indicator | flashing output indicator |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | Teach-in and IO-Link |
| Wave length | 644 nm |
| Suppression of reciprocal influence | yes |
| Alignment optical axis | < 1,5° |
| Electrical data | |
| Response time / release time | < 0,25 ms (High Speed Mode) |
| Voltage supply range +Vs | 10 ... 30 VDC |
| Current consumption max. (no load) | 40 mA (@ 10 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Voltage drop Vd | < 2 VDC |
| Output function | light / dark operate |
| Output circuit | push-pull |
| Output current | < 50 mA |
| Short circuit protection | yes |
| Reverse polarity protection | yes |
| Mechanical data | |
| Width / diameter | 8 mm |
| Height / length | 25,1 mm |
| Depth | 14,1 mm |
| Type | rectangular |
| Mechanical mounting | sleeve smooth (stainless steel) |
| Housing material | plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | flylead connector M8 4 pin, L=200 mm |
| Cable characteristics | PVC / PVC 4 x 0,08 mm² |
| Ambient conditions | |
| Operating temperature | -25 ... +50 °C |
| Protection class | IP 67 |
| Communications interface | |
| Baud rate | 230,4 kBaud (COM 3) |
| Adjustable parameters | switching point, switching hysteresis, time filters, LED status indicators, output logic, counter, operation mode, deactivate the sensor element, Find Me function, Teach-in mode |
| IO-Link port type | Class A |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = SSC1 (presence), Bit 1 = quality, Bit 3 = alarm, Bit 5 = SSC4 (counter), Bit 16-31 = 16 Bit measurement |
| Interface | IO-Link V1.1 |
| Additional data | excess gain, operating cycles, device temperature |
| Cycle time | ≥ 0,6 ms |
