Sensor

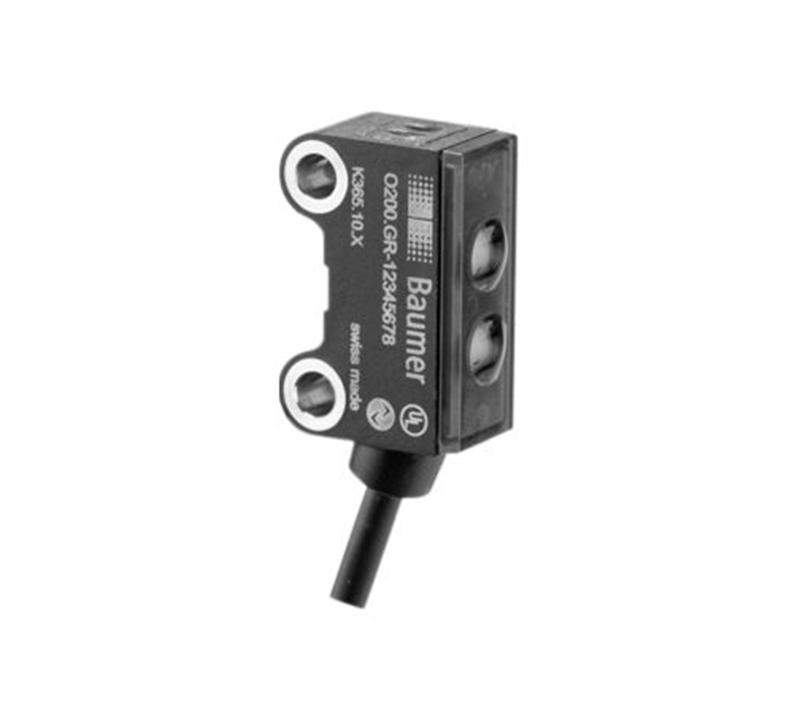

Diffuse sensors with background suppression Baumer O200.GR.F-11210938
| General Data |
| Type |
Background suppression |
| Version |
Fixed focus |
| Light source |
Pulsed red LED |
| Sensing distance Tw |
15 mm |
| Sensing range Tb |
3 ... 15 mm |
| Smallest object recognizable typ. |
0,05 mm at 10 mm |
| Alignment / soiled lens indicator |
Flashing output indicator |
| Power on indication |
LED green |
| Output indicator |
LED yellow |
| Sensing distance adjustment |
No |
| Wave length |
644 nm |
| Suppression of reciprocal influence |
Yes |
| Alignment optical axis |
< 1,5° |
| Electrical Data |
| Response time / release time |
< 1 ms |
| Voltage supply range +Vs |
10 ... 30 VDC |
| Current consumption max. (no load) |
20 mA (@ 30 VDC) |
| Current consumption typ. |
16 mA (@ 24 VDC) |
| Voltage drop Vd |
< 2 VDC |
| Output function |
Light / dark operate |
| Output circuit |
PNP complementary |
| Output current |
< 50 mA |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Width / diameter |
8 mm |
| Height / length |
25,1 mm |
| Depth |
14,1 mm |
| Type |
Rectangular |
| Mechanical mounting |
Sleeve smooth (stainless steel) |
| Housing material |
Plastic (ASA, PMMA) |
| Front (optics) |
PMMA |
| Connection types |
Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics |
PVC / PVC 4 x 0,08 mm² |
