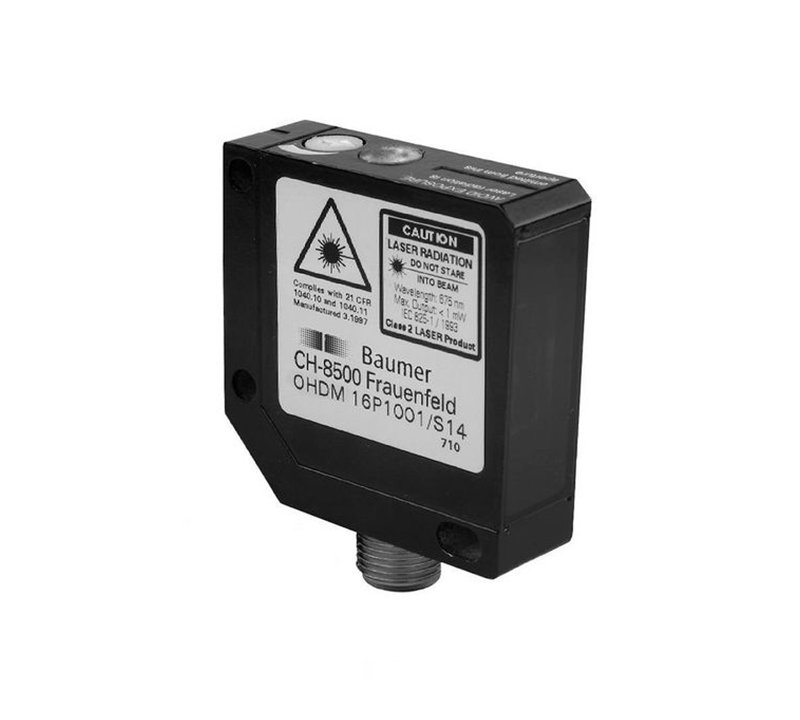

Diffuse sensors with background suppression Baumer OHDM 16P5001/S14
| general data |
| type |
background suppression |
| light source |
pulsed red laser diode |
| sensing distance Tw |
25 ... 300 mm |
| sensing range Tb (at Tw max.) |
40 ... 300 mm |
| sensing range Tb (at Tw min.) |
5 ... 25 mm |
| repeat accuracy |
< 0.1 mm at laser focus |
| output indicator |
LED yellow |
| sensing distance adjustment |
mechanical, 8 turn |
| laser class |
2 |
| distance to focus |
80 mm |
| wave length |
650 nm |
| suppression of reciprocal influence |
yes |
| electrical data |
| response time / release time |
< 0.6 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
35 mA |
| current consumption typ. |
25 mA |
| voltage drop Vd |
< 2 VDC |
| output function |
light / dark operate |
| output circuit |
PNP |
| output current |
< 200 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
15.4 mm |
| height / length |
50 mm |
| depth |
50 mm |
| type |
rectangular |
| housing material |
die-cast zinc |
| front (optics) |
glass |
| connection types |
connector M12 4 pin |
| ambient conditions |
| operating temperature |
-10 ... +50 °C |
| protection class |
IP 67 |
