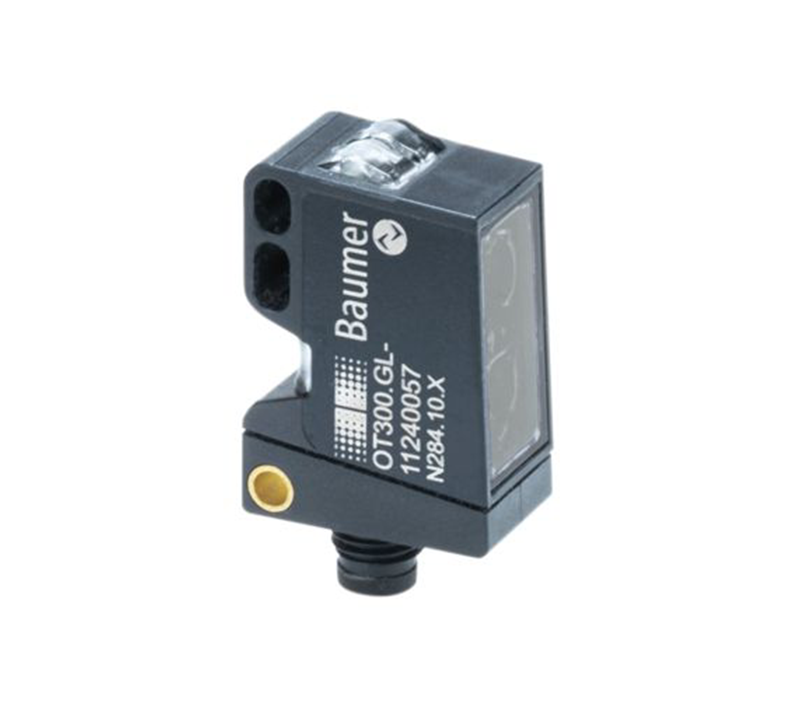

Diffuse sensors with background suppression Baumer OT300.GL-GLZZJ.72N
- Measurement value via IO-Link
- Reliable also on very dark and shiny objects
- Manipulation-proof, simple teach-in via qTeach or line teach
- Extended parameterization options and additional diagnostic data
- Longest distances thanks to time of flight principle
- Laser performance for an accurate switching behavior
- Compact, miniaturized housing format
| General data | |
| Type | Background suppression |
| Version | Time of Flight |
| Light source | Pulsed red laser diode |
| Sensing distance Tw | 100 ... 1800 mm |
| Sensing range Tb | 100 ... 1800 mm |
| Repeat accuracy | ≤ 1400 ... 5500 µm |
| Temperature drift | ± 15 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | Teach-in and IO-Link |
| Laser class | 1 |
| Distance to focus | 700 mm |
| Wave length | 680 nm |
| Suppression of reciprocal influence | Yes |
| Beam type | Point |
| Alignment optical axis | < 2° |
| Electrical data | |
| Response time / release time | < 4 ms (High Speed Mode) < 8 ms (Standard Mode) < 50 ms (Long Range Mode) |
| Voltage supply range +Vs | 12 ... 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Voltage drop Vd | < 2 VDC |
| Output function | Light operate, switchable |
| Output circuit | Push-pull / IO-Link |
| Output current | < 50 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Communication interface | |
| Interface | IO-Link V1.1.3 |
| Profile | DMSS |
| IO-Link port type | Class A |
| Baud rate | 230,4 kBaud (COM 3) |
| Cycle time | ≥ 2 ms |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-31 = 16 Bit measurement |
| Adjustable parameters | Switching point Switching hysteresis Operation mode Time filters LED status indicators Output logic Output circuit Analog output characteristic Counter Deactivate the sensor element Find Me function Teach-in mode |
| Communication interface | |
| Additional data | Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms |
| Mechanical data | |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Ambient conditions | |
| Protection class | IP 67 |
| Operating temperature | -20 ... +50 °C |
| Storage temperature | -40 ... +70 °C |
| Vibration (sinusoidal) | IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis |
| Shock (semi-sinusoidal) | IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction |
