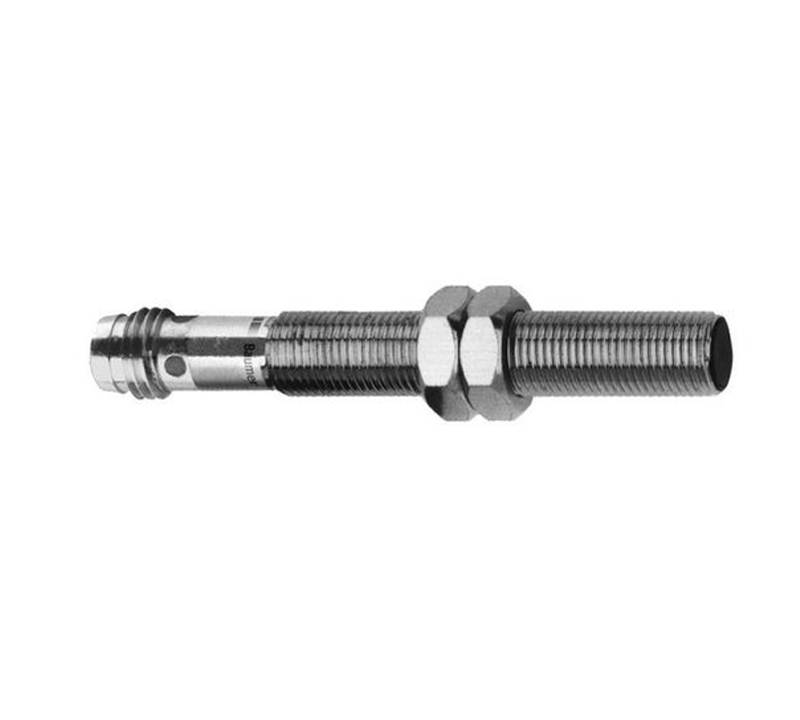

Diffuse sensors with intensity difference Baumer FZAM 08P1001/S35L
| general data |
| type |
intensity difference |
| light source |
pulsed infrared diode |
| sensing distance Tw |
< 40 mm |
| alignment / soiled lens indicator |
flashing light indicator |
| light indicator |
LED red |
| sensitivity adjustment |
no |
| wave length |
880 nm |
| suppression of reciprocal influence |
yes |
| electrical data |
| response time / release time |
< 1 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
42 mA |
| current consumption typ. |
20 mA |
| voltage drop Vd |
< 2 VDC |
| output function |
light operate |
| output circuit |
PNP |
| output current |
< 100 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
8 mm |
| height / length |
73 mm |
| type |
cylindrical threaded |
| housing material |
brass nickel plated |
| front (optics) |
PC |
| connection types |
connector M8, 3 pin |
| ambient conditions |
| operating temperature |
-25 ... +65 °C |
| protection class |
IP 65 |
