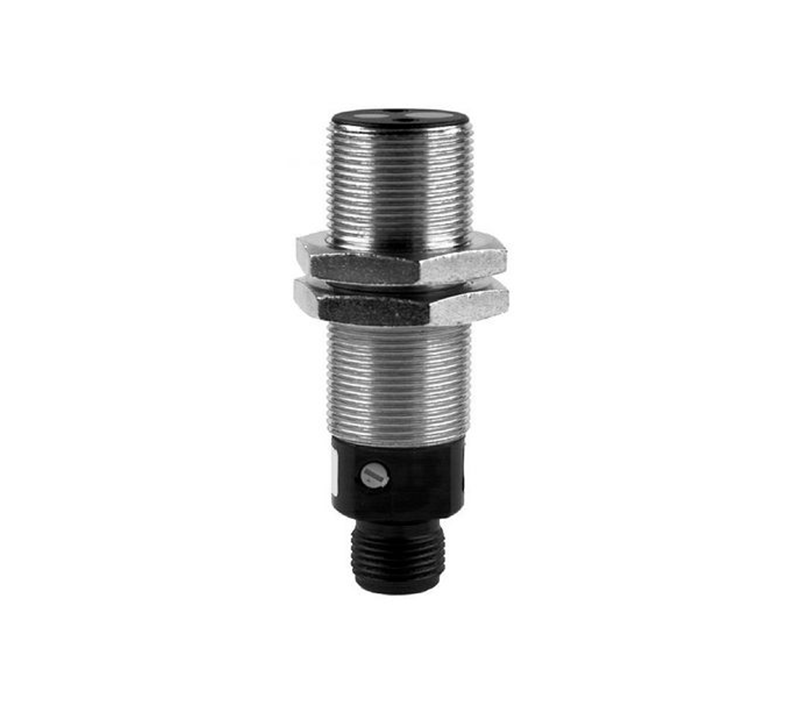

Diffuse sensors with intensity difference Baumer FZAM 18P1150/S14
| general data |
| type |
intensity difference |
| light source |
pulsed infrared diode |
| sensing distance Tw |
60 ... 430 mm |
| sensing distance Tw (with doubling lense) |
80 ... 800 mm |
| alignment / soiled lens indicator |
flashing light indicator |
| light indicator |
LED yellow |
| sensitivity adjustment |
potentiometer, 270° |
| wave length |
880 nm |
| suppression of reciprocal influence |
yes |
| electrical data |
| response time / release time |
< 1 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
45 mA |
| current consumption typ. |
30 mA |
| voltage drop Vd |
< 1.8 VDC |
| output function |
light operate |
| output circuit |
PNP |
| output current |
< 200 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
18 mm |
| height / length |
60 mm |
| type |
cylindrical threaded |
| housing material |
brass nickel plated / PC |
| front (optics) |
PC |
| connection types |
connector M12 4 pin |
| ambient conditions |
| operating temperature |
-25 ... +55 °C |
| protection class |
IP 67 |
