    Sensor

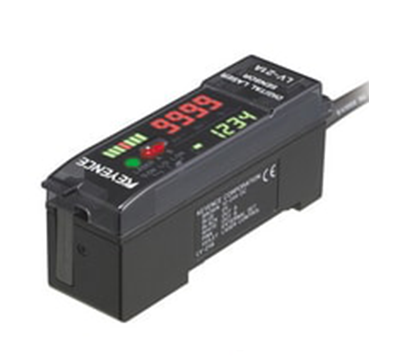

    Digital Laser Sensor LV-21AP

    • Amplifier Unit
    • Main Unit
    • PNP
    Digital Laser Sensor LV Series



    Model

    LV-21AP

    Type

    PNP output

    Main unit/expansion unit

    Main unit

    Control output

    PNP open-collector x 2 channels, 30 VDC max., max. 100 mA, residual voltage (1.0 V max.)

    Response speed

    FINE : 80 µs , TURBO : 500 µs , SUPER , TURBO : 4 ms

    Number of interference
    preventive units

    FINE : None , TURBO : 2 units , SUPER : 4 units

    Protection circuit

    Reversed polarity protection, over-current protection, surge absorber

    Unit expansion

    Up to 7 additional expansion units can be installed (8 units including the main unit),

    Rating

    Power voltage

    12 to 24 VDC, Ripple (P-P) 10 % or less

    Power consumption

    1.5 W max. (125 mA max. for 12 V, 62.5 mA max. for 24 V)

    Environmental resistance

    Ambient temperature

    -10 to +55 °C 14 to 131 °F (No freezing) *1

    Relative humidity

    35 to 85 % RH (No condensation)

    Material

    Main unit

    Polycarbonate

    Case

    Weight

    Approx. 75 g

    *1 When several units are connected, the ambient temperature requirement varies depending on the total number of units connected.
    When 2 to 5 units: -10 to +50 °C 14 to 122 °F
    When 6 to 7 units: -10 to +45 °C 14 to 113 °F
    When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20 mA.
