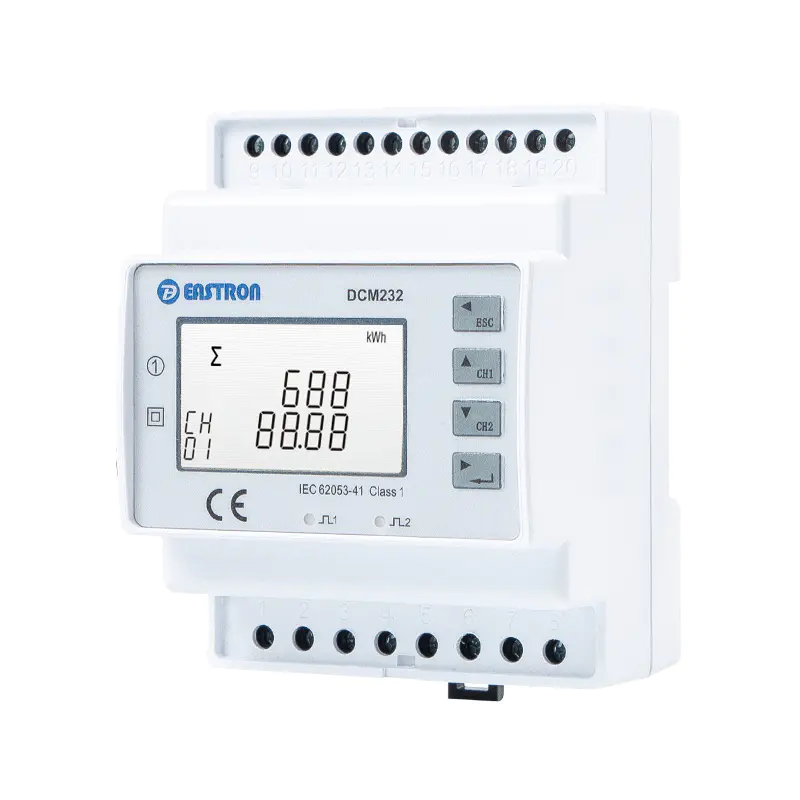

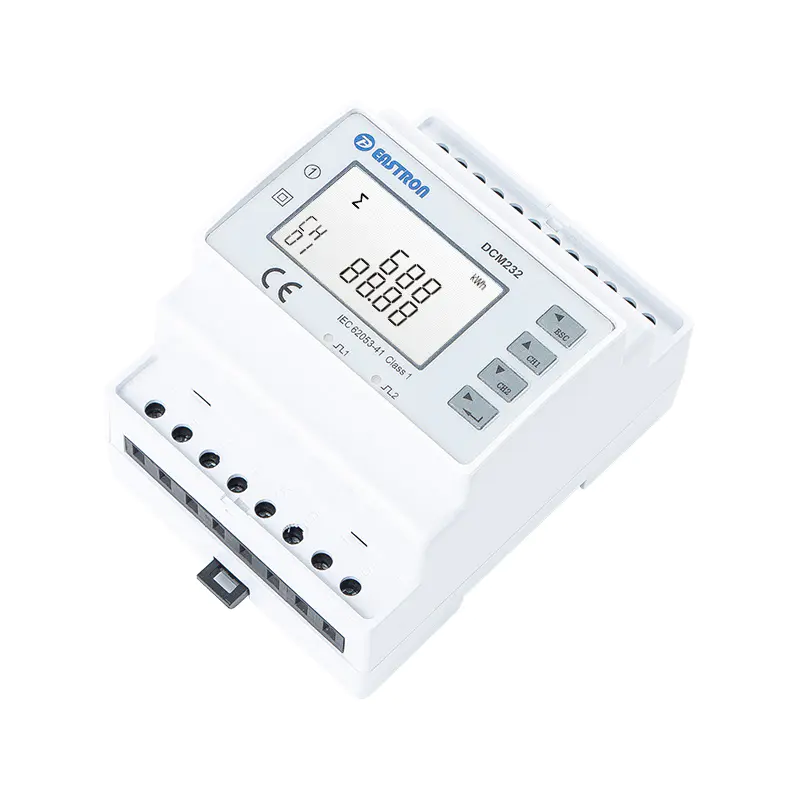

Din Rail Dual Channels Dc Energy Monitoring Meter For Ev Charging Metering Eastron DCM232
- Double DC Input Channels
- Voltage Input 5…1000V DC
- Current input 75mV/60mV/45mV available
- Suitable for Dual Channel DC EV Charging Piles
- Pulse Output
- RS485 Modbus RTU
- Multi-tariff (RTC) Available
- Record 12 Months kWh Information
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on DC system (1P+N) |
|
|
Measurement Accuracy |
Power |
1 % of range maximum |
|
|
Active Energy |
1 % of range maximum |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
Input & Output |
||
|
Input-Voltage |
Range |
5-1000V DC |
|
5-600VDC |
||
|
5-300VDC |
||
|
Power consumption |
≤0.5VA |
|
|
Input-Current |
Shunt |
75mV is default,40/60mV optional |
|
Power consumption |
≤0.1VA |
|
|
Output |
DCM232 |
Pulse Output + RS485 Modbus |
|
Modbus Communications |
|
|
Interlace Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1-247 |
|
Transmission Mode |
Half Duplex |
|
Data Type |
Floating Point |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps〜38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
