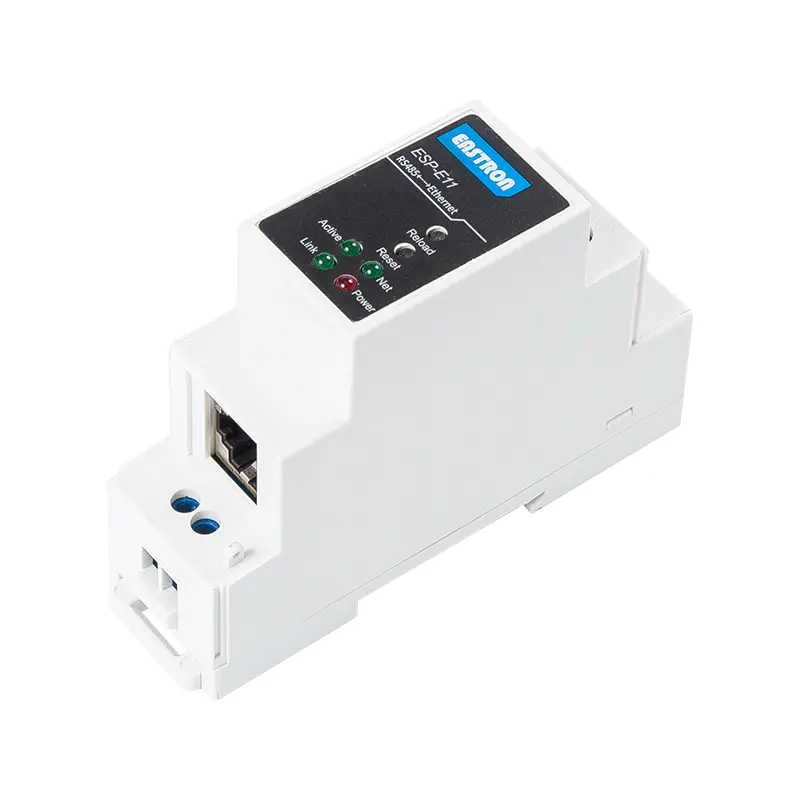

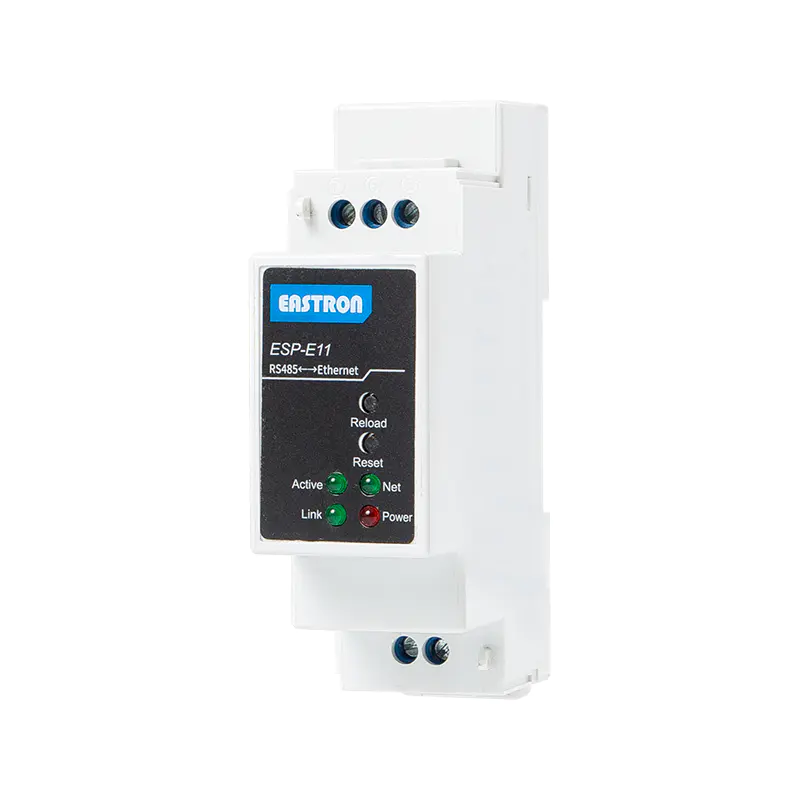

Din Rail Rs485 To Ethernet Protocol Converter For Iot Solutions Eastron ESP-E11
- Small Size
- Din Rail Mounting
- Modbus RTU to Modbus TCP/IP converter
- Support 10/100M Ethernet Auto-Negotiation
- Webpage Easy Configuration or PC IOTService Tool
| Product parameters |
| Basic Frequency |
96MHz |
| Flash |
2MB |
| SDRAM |
128KB |
| Operating System |
FreeRTOS |
| Ethernet |
1 |
| Interface Standard |
10/100M Base-T Auto-Negotiation |
| Network Protocol |
IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， AutoIP， ICMP， Telnet，NTP， Modbus TCP |
| Security Protocol |
TLS 1.2 AES 128Bit DES3 |
| Port Number |
EE10：1 RS232 EE11：1 RS485 |
| Data Bits |
5，6，7，8 |
| Stop Bit |
1，2 |
| Check Bit |
None，Even，Odd |
| Baud Rate |
TTL：600 bps~460800bps |
| Flow Control |
No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control |
| Configuration |
Http Web Configuration Customization of HTTP Web Pages |
| Size |
97.60mm x 64.95mm x 27.50mm |
| Storage Temp. |
-45 ~ 105°C， 5 ~ 95% RH |
| Input Voltage |
Protoss-PE11-H： 100～240VAC@50～60Hz Protoss-PE11-M： 9～48VDC@1A |
| Power |
<400mW |
| Network Transformer |
Integrated |
| Work Temp. |
-40 ~ 85°C |
