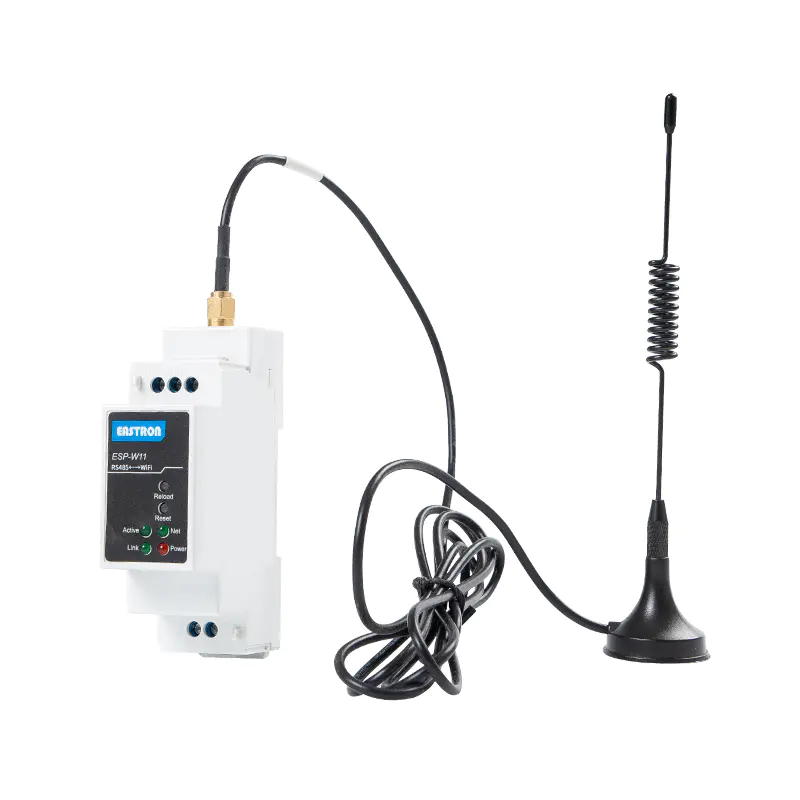

Din Rail Rs485 To Wifi Converter For Iot Solutions Eastron ESP-W11
- Small Size, Din Rail Mounting
- RS485 To WiFi Conversion
- Webpage Easy Configuration or PC IOTService Tool
- Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
| Product parameters |
| Basic Frequency |
160MHz |
| Flash |
2MB |
| SDRAM |
352KB |
| Operating System |
mbed |
| Network Protocol |
IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， BOOTP， AutoIP， ICMP，Web socket， Telnet， uPNP， NTP， Modbus TCP |
| Security Protocol |
TLS v1.2 AES 128Bit DES3 |
| Network Mode |
STA/AP/STA+AP |
| Transmit Power |
802.11b: +18dBm(Max.) 802.11g: +16dBm(Max.) 802.11n: +15dBm(Max.) |
| Receive Sensitivity |
802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm |
| Wi-Fi Security |
WEP64/WEP128/TKIP/ AES |
| Port Number |
1 RS485 |
| Data Bits |
7，8 |
| Stop Bit |
1，2 |
| Check Bit |
None，Even，Odd |
| Baud Rate |
TTL：600bps~230400bps |
| Flow Control |
No Flow control Software Xon/ Xoff flow control |
| Configuration |
Web or IOTService PC Software |
| Size |
102.03 x 64.95 x 27.50 mm |
| Storage Temp. |
-45 ~ 105°C， 5 ~ 95% RH |
| Input Voltage |
Protoss-PW11-H：100～240VAC@50～60Hz Protoss-PW11-M：9～48VDC@1A |
| Working Current |
~200mA |
| Power |
<700mW |
| Wi-Fi Standard |
802.11 b/g/n |
| Work Temp. |
-40 ~ 85°C |
