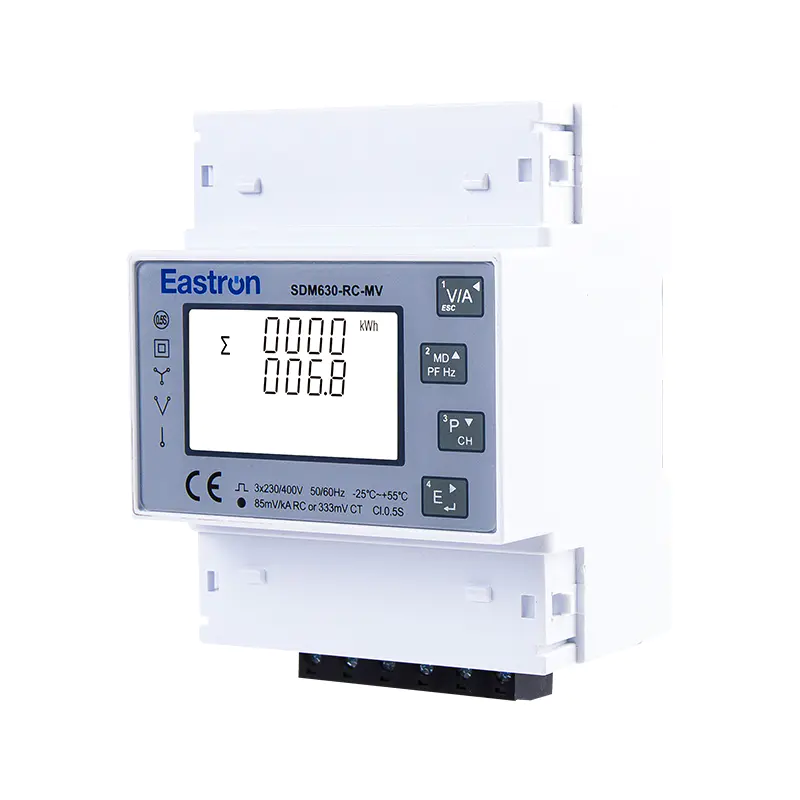

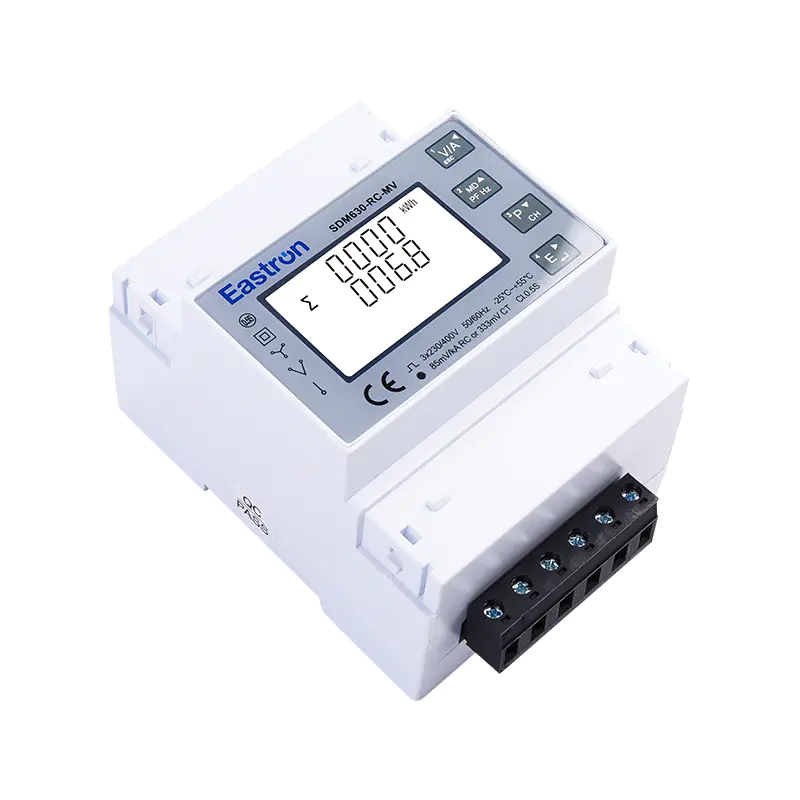

Din Rail Type Three Phase Multi-function Power Meter Available For Ct Or Rogowski Coil Connection Eastron SDM630-RC-MV
- 333mV CT input or Rogowski coil connection
- Multi-parameter measurement
- Bi-directional measurement
- RS485 Modbus communication
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current (RJ12 port) |
RC Mode |
85mV/kA Rogowski coil input |
|
CT Mode |
333mV CT input |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM630MCT-RC-MV |
RS485 Modbus (RJ45 port) |
|
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
