Displacement Measurement Sensors SICK DT20 Hi
Type:DT20-P224B
Part No.:1040405
Part No.:1040405

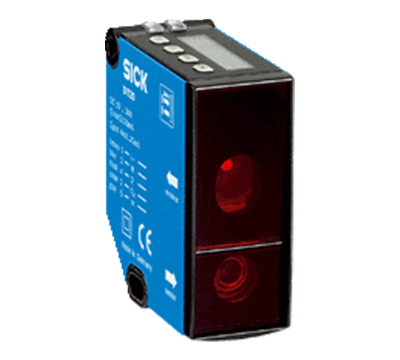

Displacement Measurement Sensors SICK DT20 Hi DT20-P224B
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
Mechanics/electronics
| Supply voltage Vs | DC 10 V ... 30 V 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | ≤ 1.8 W 3) |
| Warm-up time | ≤ 10 min |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |

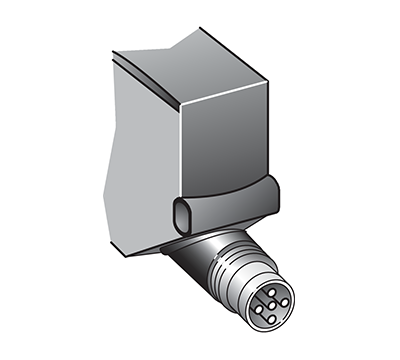

| Connection type | Male connector, M12, 5-pin, swivel connector unit |
| Indication | LC display, 2 x LED |
| Weight | 135 g |
| Dimensions (W x H x D) | 24.3 mm x 72.4 mm x 54.1 mm |
| Enclosure rating | IP65 (EN 60529) |
| Protection class | II |
- 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) May not fall short of or exceed VS tolerances.
- 3) Without load.
Performance
| Measuring range | 100 mm ... 1,000 mm 1) |
| Target | Natural objects |
| Repeatability | ≥ 2.5 mm 1) 2) 3) 4) |
| Linearity | ± 6 mm 3) 4) 5) |
| Response time | ≥ 2.5 ms 2) |
| Measuring frequency | ≤ 400 Hz 1) |
| Output time | ≥ 2.5 ms |
| Light source | Laser, red visible red light |
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 6 mm x 12 mm (1000 mm) |
| Additional function | Set moving average fast/medium/slow, switching mode: distance to object (DtO), teach-in of digital output, invertable digital output, teach-in of analog output, Invertable analog output, Multifunctional input: laser off / external teach-in / deactivated, switch-off display, lock user interface |
- 1) 6 % ... 90 % remission.
- 2) Dependent on the set average or sensitivity.
- 3) When calibrated in the application regularly.
- 4) The models with measuring range of 100 mm ... 1,000 mm meets the specification of the models with measuring range of 100 mm ... 1,000 mm for distances
< 600 mm. - 5) 90 % remission.
Interfaces
|
|||||||||||
|
|||||||||||
| Multifunctional input (MF) | 1 x MF 2) | ||||||||||
- 1) PNP: HIGH = VS - (< 2 V) / LOW = < 2 V; NPN: HIGH = < 2 V / LOW = VS.
- 2) MF can be used as laser-off, external teach-in or deactivated.
Ambient data
| Ambient temperature, operation | –20 °C ... +55 °C, Operating temperature at VS = 24 V |
| Ambient temperature, storage | –40 °C ... +60 °C |
| Temperature drift | 0.25 mm/K 1) |
| Typ. Ambient light immunity |
Artificial light: ≤ 3,000 lx Sunlight: ≤ 10,000 lx |
| Vibration resistance | EN 60068-2-6, EN 60068-2-64 |
| Shock resistance | EN 60068-2-27 |
- 1) 0,5 mm/K: for distances > 600 mm.
Classifications
| ECl@ss 5.0 | 27270801 |
| ECl@ss 5.1.4 | 27270801 |
| ECl@ss 6.0 | 27270801 |
| ECl@ss 6.2 | 27270801 |
| ECl@ss 7.0 | 27270801 |
| ECl@ss 8.0 | 27270801 |
| ECl@ss 8.1 | 27270801 |
| ECl@ss 9.0 | 27270801 |
| ECl@ss 10.0 | 27270801 |
| ECl@ss 11.0 | 27270801 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
