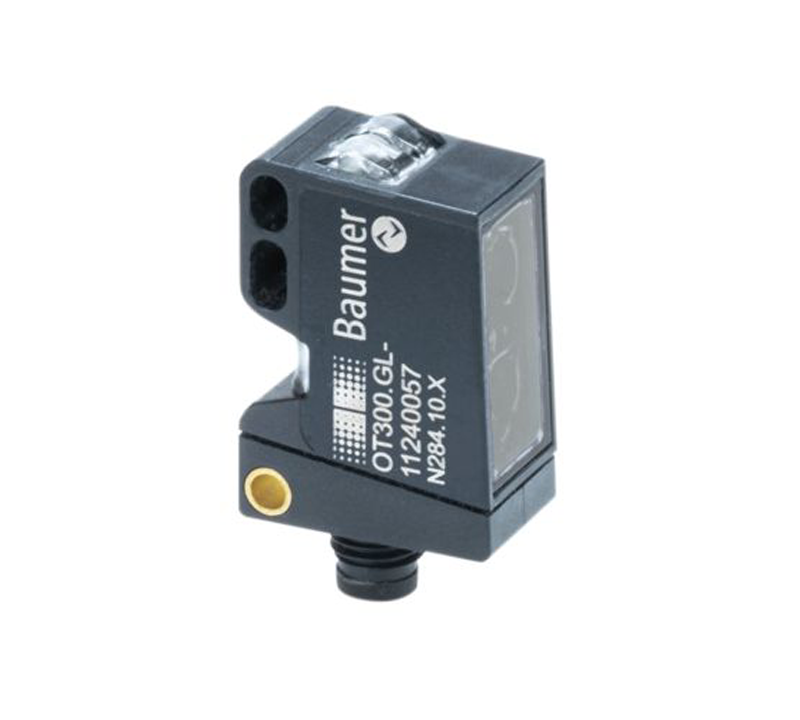

Sensor
| General Data | |
| Type | Distance measuring |
| Version | Time of Flight |
| Measuring Distance Sd | 100 ... 1800 mm |
| Measuring Range Mr | 1700 mm |
| Focal Distance | 700 mm |
| Adjustment | qTeach / external |
| Power on Indication | LED green |
| Output Indicator | LED yellow |
| Repeat Accuracy | ≤ 1400 ... 5500 µm |
| Linearity Error | ± 10 mm |
| Beam Type | Point |
| Suppression of Reciprocal Influence | Yes |
| Alignment Optical Axis | < 2° |
| Temperature Drift | ± 15 mm |
| Light Source | |
| Light Source | Pulsed red laser diode |
| Wave Length | 680 nm |
| Laser Class | 1 |
| Electrical Data | |
| Response Time / Release Time | < 8 ms |
| Voltage Supply Range +Vs | 12 ... 30 VDC |
| Current Consumption Max. (no load) | 60 mA |
| Output Circuit | Analog 0 ... 10 VDC |
| Short Circuit Protection | Yes |
| Reverse Polarity Protection | Yes, Vs to GND |
| Mechanical Data | |
| Width / Diameter | 12.9 mm |
| Height / Length | 32.3 mm |
| Depth | 23 mm |
| Type | Rectangular |
| Housing Material | Plastic (ASA, PMMA) |
| Front (Optics) | PMMA |
| Connection Types | Connector M8 4 pin |
| Ambient Conditions | |
| Protection Class | IP 67 |
| Operating Temperature | -20 ... +50 °C |
| Storage Temperature | -40 ... +70 °C |
| Vibration (Sinusoidal) | IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis |
| Shock (Semi-Sinusoidal) | IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction |
