Energy Meter & Current Transformer

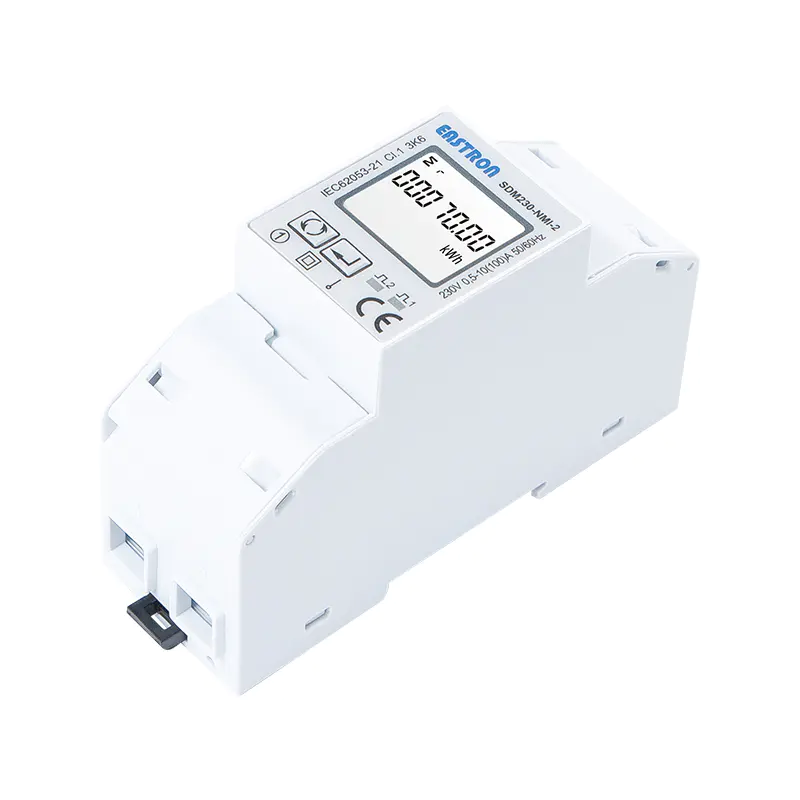

Dual Rs485 Din Rail Single Phase Multi-function Solar Pv/zero Export Meter With 50ms Data Update For Vpp Solution Eastron SDM230-NMI-2
- 50mS Data Update
- Dual Load RS485 Ports
- Modbus Communication
- For Solar PV /VPP Metering
- Multi-measurement:kWh, W, V, A, PF, Hz, dmd, etc.
- Max.100A Direct Load
- MID Approved
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Voltage |
|
|
Current |
±0.5% |
|
|
Frequency |
±0.2% |
|
|
Power Factor |
0.01 |
|
|
Active Power |
±1% |
|
|
Reactive Power |
±1% |
|
|
Apparent Power |
±1% |
|
|
Active Energy |
Class 0.5 IEC62053-22 Class C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.15A |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM230-NMI |
2 Pulse Outputs + RS485 Modbus |
|
|
SDM230-NMI-2 |
2x RS485 Modbus |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
