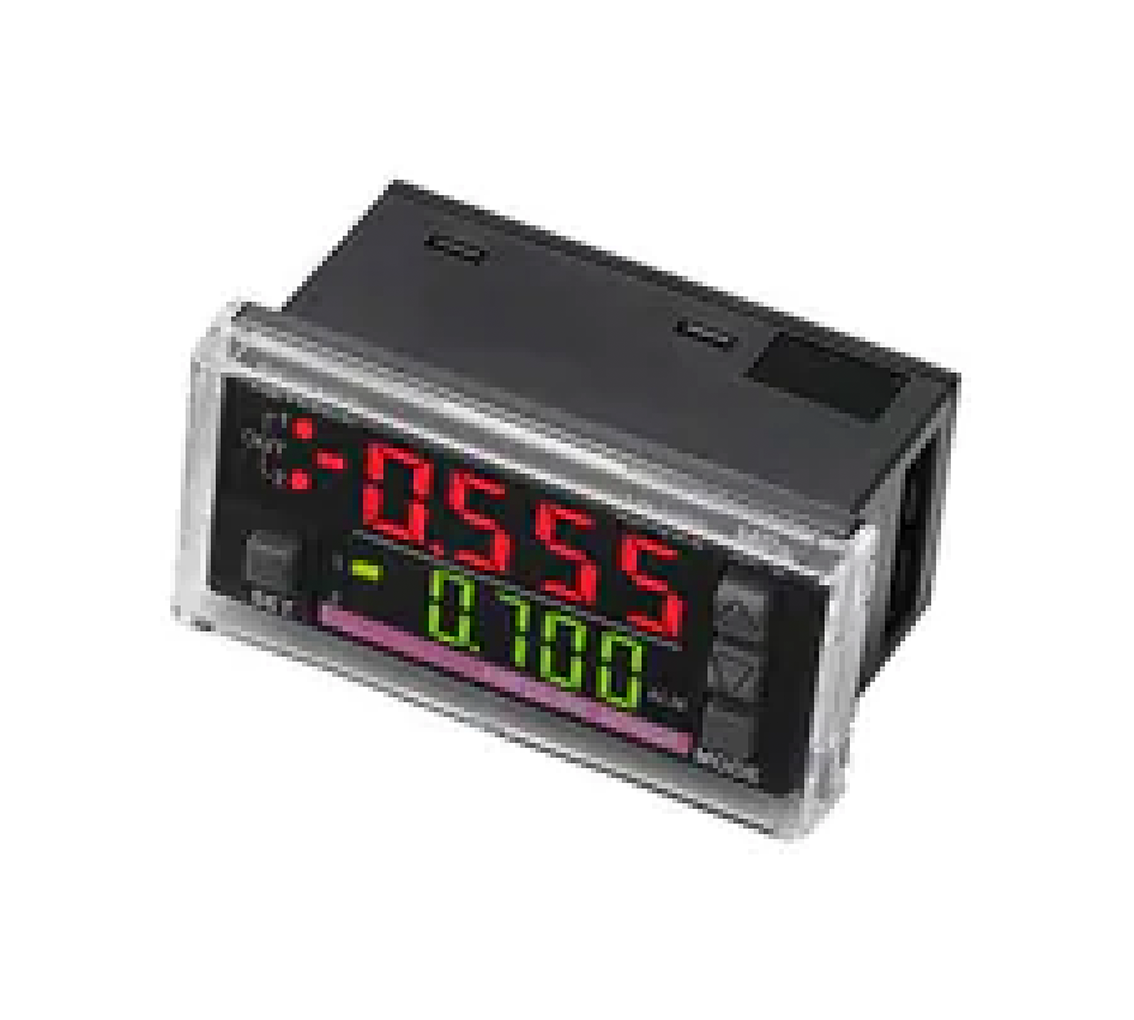

Durable Multi-Fluid Digital Pressure Sensors AP-V85W

Model

AP-V85W

Type

Standard (Panel), NPN

Display

2-level display with 4 1/2-digit, 7-segment LED (Character height: Upper level: 8 mm 0.32", red, Lower level: 5.7 mm 0.22", green) Alarm indicator: Red LED

Operation indicator

Red LED x 3 (corresponding to control output 1 and 2)

Display resolution

AP-10SK/AP-11SK: Standard mode 0.1inchHg, High-resolution mode 0.01inchHg
AP-12SK:Standard mode/0.01PSI, High-resolution mode/0.001PSI
AP-13SK:Standard mode/0.1PSI, High-resolution mode/0.01PSI
AP-14SK:Standard mode/1PSI, High-resolution mode/0.1PSI
AP-15SK/AP-16SK:Standard mode/10PSI, High-resolution mode/1PSI

Power consumption

Normal

12V:1380mW(115mA) or less
24V:1920mW(80mA) or less^*1

Hysteresis

Variable (Standard: 0.5% of FS; high-resolution: 0.1% of F.S.)

Response time (Chattering prevention function)

Selectable from 5, 10, 100, 500 and 1000 seconds

I/O

Analog output

4 to 20 mA, Maximum load resistance: 260Ω .

Zero-shift input

Input time of 20 ms or more. (or analog output selectable)

Bank input

Control output

NPN (PNP) open collector x 2 channels (N.O./N.C. selectable), 40 VDC (30 VDC) max., 100 mA max. with residual voltage of 1 V max.

Rating

Power voltage

12 to 24 VDC Ripple (P-P) 10% or less

Power consumption

Eco mode

12V:1020mW(85mA) or less
24V:1200mW(50mA) or less^*1

Environmental resistance

Ambient temperature

-10 to +50°C (14 to 122°F), No condensation

Relative humidity

35 to 85%, No condensation

Vibration resistance

10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively

Material

Housing and cover: Polycarbonate, Keytop: Elastomer

Accessories

AP-V85W (P) / V87W (P): Panel mounting bracket, protective cover

Weight

Approx. 85 g
