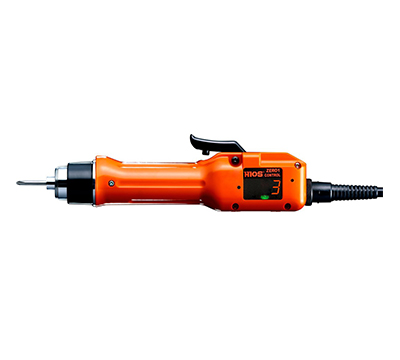

Electric Screwdriver BLG-4000ZERO1

Feature
Anyone can be a skilled craftsman in Just 30 Seconds
●Direct Teaching
Setting can be easily done by pressing a button. Time and effort for setting will be significantly saved by directly fastening several screws into the work pieces and allowing the driver to automatically learn the number of rotating pulses of the motor (the setting value is +10% of the maximum count and -10% of the minimum count) from the start to the completion of screw fastening.
●Pulse System
By counting the number of rotating pulses of the motor, the system precisely judges screw fastening errors such as the mixing of a wrong type of screw, a floating screw, a Cam out recess, a stripped screw hole and a cross threaded screw.
●Screw Counter
It displays the remaining number of screws to fasten every time a screw is fastened.

Start	Output Torque Range	Torque Switching	Unloaded Rotation Speed(r.p.m)	Screw Size(mm)	Bit (selectable)※	Power Supply	External Dimensions(mm)	Weight(g)	Accessories	Torpue Range Table
Lever Start Type	0.1-0.55 N・m 0.9-4.8 lbf・in 1-5.5 kgf・cm	Stepless Adjustment	Low 690 High 1000	Screw size1.4-2.6 Tapping1.4-2.3	Hios shank H4 Hex shank 1/4HEX	Model T-45BL T-70BL	Grip 32.7 Length(mm) 206	370	Bit-H4 +♯0 (∅2.5×40mm) +♯1 (∅4.0×40mm) Bit-1/4HEX +♯1 (5.0×50mm) +♯2 (5.0×50mm) - (5.0×50mm) Spring White Cord length(m) 2m(6p)

Start

Output
Torque
Range

Torque
Switching

Unloaded
Rotation
Speed(r.p.m)

Screw
Size(mm)

Bit (selectable)※

Power Supply

External Dimensions(mm)

Weight(g)

Accessories

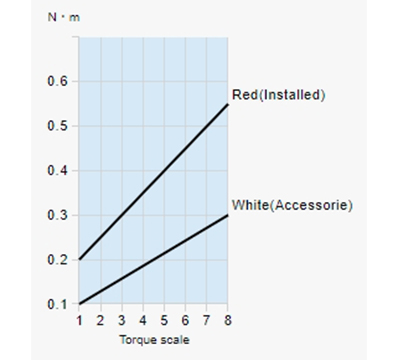

Torpue Range Table

Lever Start Type

0.1-0.55 N・m
0.9-4.8 lbf・in
1-5.5 kgf・cm

Stepless
Adjustment

Low 690
High 1000

Screw size1.4-2.6
Tapping1.4-2.3

Hios shank H4
Hex shank 1/4HEX

Model
T-45BL
T-70BL

Grip 32.7
Length(mm) 206

370

Bit-H4
+♯0 (∅2.5×40mm)

+♯1 (∅4.0×40mm)
Bit-1/4HEX

+♯1 (5.0×50mm)
+♯2 (5.0×50mm)
- (5.0×50mm)

Spring White
Cord length(m) 2m(6p)

Series Comparison

Model	Start	Output Torque Range	Unloaded Rotation Speed(r.p.m)	Screw Size(mm)	Bit Drive
BLG-4000ZERO1	Lever Start Type	0.1-0.55 N・m 0.9-4.8 lbf・in 1-5.5 kgf・cm	Low 690 High 1000	Screw size 1.4-2.6 Tapping 1.4-2.3	Hios shank H4 Hex shank 1/4HEX
BLG-5000ZERO1	Two-way(Push/Lever)Start Type	0.2-1.2 N・m 1.7-10 lbf・in 2-12 kgf・cm	Low 690 High 1000	Screw size 2-3 Tapping 2-3	Hios shank H4 Hex shank H5&5HEX & or 1/4HEX
BLG-5000ZERO1-18	Two-way(Push/Lever)Start Type	0.5-1.5 N・m 4.3-13 lbf・in 5-15 kgf・cm	Low 1200 High 1800	Screw size 2.3-3 Tapping 2-2.6	Hios shank H5 and 5HEX(both can be used) Hex shank 1/4HEX
BLG-5000ZERO1-HT	Two-way(Push/Lever)Start Type	0.5-2 N・m 4.3-17 lbf・in 5-20 kgf・cm	Low− High 730	Screw size 2-4 Tapping 2-3	Hios shank H5 and 5HEX(both can be used) Hex shank 1/4HEX
BLG-5000ZERO1-15	Two-way(Push/Lever)Start Type	0.3-1 N・m 2.6-10 lbf・in 3-10 kgf・cm	Low 1000 High 1500	Screw size 2.3-3 Tapping 2-2.6	Hios shank H4 Hex shank H5&5HEX & or 1/4HEX
