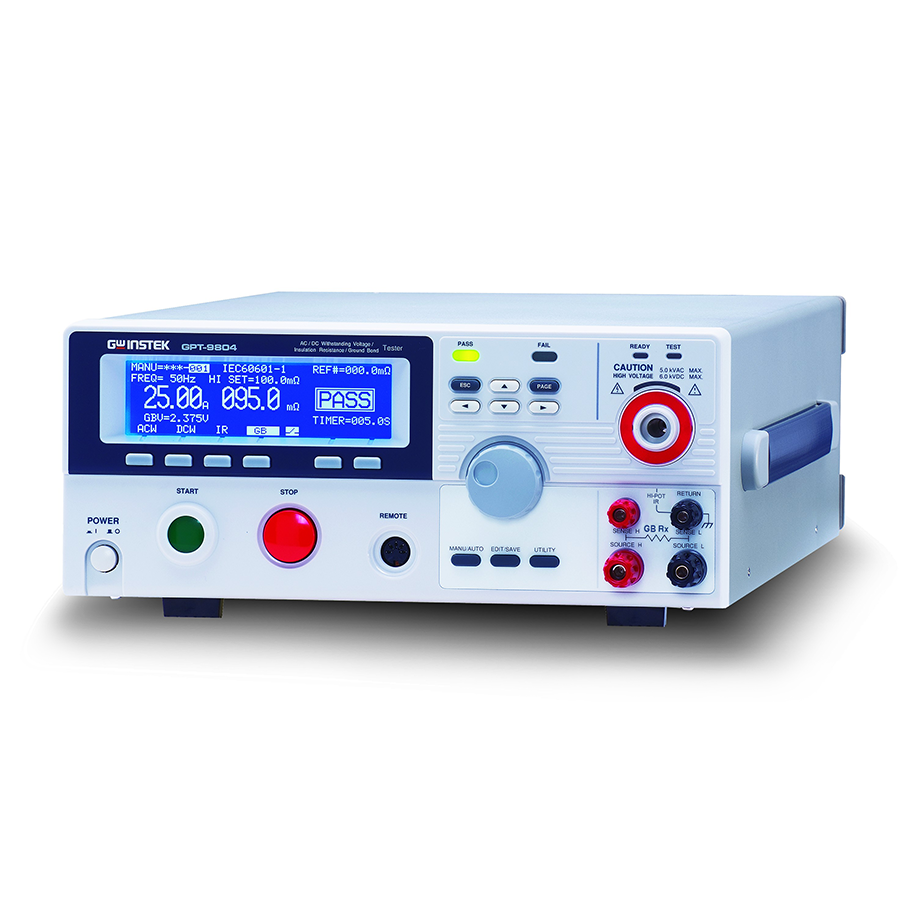

Electrical Safety Tester GPT-9800

200VA AC Test Capacity
240x64 Ice Blue Dot matrix LCD
Manual/Auto Mode
Function Key for quick selecting
High intensity flash for Caution & Status indication
Safety INTERLOCK function
Zero Crossing Turn-on Operation
Controllable Ramp-up Time
RMS Current Measurement
High resolution: 1uA for measuring current, 2V for setting voltage
PWM amplifier to enhance the power efficiency and reliable testing
Max. 100 memory block for test condition (step) setting. And each step can be named individually.
Remote terminal on the front panel for “start” and “stop” control
Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

add to cart Inquiry Now

Model \ Func.	GPT-9804	GPT-9803	GPT-9802	GPT-9801
AC WITHSTANDING	v	v	v	v
DC WITHSTANDING	v	v	v	×
INSULATION RESISITANCE	v	v	×	×
GROUND BOND	v	×	×	×

AC WITHSTANDING
Output-Voltage Range	0.050kV~ 5.000kV ac
Output-Voltage Resolution	2V/step
Output-Voltage Accuracy	± (1% of setting +5V) [no load]
Maximum Rated Load	200 VA (5kV/40mA)
Maximum Rated Current	40mA (0.5kV < V ≦ 5kV) 10mA (0.1kV ≦ V≦ 0.5kV)
Output-Voltage Waveform	Sine wave
Output-Voltage Frequency	50 Hz / 60 Hz selectable
Voltage regulation	± (1% of reading +5V) [full load →no load]
Voltmeter Accuracy	± (1% of reading+ 5V)
Current Measurement Range	0.001mA~040.0mA
Current Best Resolution	0.001mA / 0.01mA / 0.1mA
AC Current Measurement Accuracy	±(1.5% of reading +30 counts) when HISET < 1.11mA ±(1.5% of reading +3 counts) when HISET ≧ 1.11mA
Window Comparator Method	Yes
ARC Detect	Yes
RAMP (Ramp-Up Time)	0.1~999.9s
TIMER (Test Time)*	OFF**, 0.5s~999.9s
GND	ON/OFF
DC WITHSTANDING
Output-Voltage Range	0.050kV~ 6.000kV dc
Output-Voltage Resolution	2V/step
Output-Voltage Accuracy	± (1% of setting +5V) [no load]
Maximum Rated Load	50W (5kV/10mA)
Maximum Rated Current	10mA (0.5kV < V ≦ 6kV) 2mA (0.05kV ≦ V≦ 0.5kV)
Voltage regulation	± (1% of reading +5V) [full load → no load]
Voltmeter Accuracy	± (1% of reading+ 5V)
Current Measurement Range	0.001mA~010.0mA
Current Best Resolution	0.001mA / 0.01mA / 0.1mA
DC Current Measurement Accuracy	±(1.5% of reading +30 counts) when HISET < 1.11mA ±(1.5% of reading +3 counts) when HISET ≧ 1.11mA
Window Comparator Method	Yes
ARC Detect	Yes
RAMP (Ramp-Up Time)	0.1~999.9s
TIMER (Test Time)*	OFF**, 0.5s~999.9s
GND	ON/OFF
INSULATION RESISITANCE
Output-Voltage	50V~1000V dc
Output-Voltage Resolution	50V/step
Output-Voltage Accuracy	± (1% of setting +5V) [no load]
Resistance Measurement Range	1 MΩ~ 9500 MΩ
Test voltage	Measurable Range	Accuracy
50V≦V≦450V	1 MΩ~ 50 MΩ 51 MΩ~ 2000 MΩ	±(5% of reading +1 count) ±(10% of reading +1 count)
500V≦V≦1000V	1 MΩ~ 500 MΩ 501 MΩ~ 9500 MΩ	±(5% of reading +1 count) ±(10% of reading +1 count)
Window Comparator Method	Yes
Output Impedance	600 kΩ
RAMP (Ramp-Up Time)	0.1~999.9s
TIMER (Test Time)*	1s~999.9s
GND	OFF (fixed)
GROUND BOND
Output-Current Range	03.00A~30.00A ac
Output-Current Resolution	0.01A
Output-Current Accuracy	3A≦I≦8A : ± (1% of setting +0.2A) 8A<I≦30A : ± (1% of setting +0.05A)
Test-Voltage	6Vac max. (open circuit)
Test-Voltage Frequency	50 Hz / 60 Hz selectable
Resistance Measurement Range	10mΩ~650.0mΩ
Resistance Measurement Resolution	0.1mΩ
Resistance Measurement Accuracy	± (1% of reading +2mΩ)
Window Comparator Method	Yes
TIMER (Test Time)*	0.5s~999.9s
GND	OFF (fixed)
Test Method	Four Terminal
MEMORY
Single Step Memory	MANU : 100 blocks
Automatic Testing Memory	AUTO : 100 blocks, menu per auto : 16
INTERFACE
RS232	Standard
USB (Device)	Standard
GPIB	Option
Remote Terminal (Front)	Standard
SIGNAL IO	Standard
GENERAL
Display	240 x 64 dot matrix LED back light LCD
Power Source	AC100V/120V/220V/230V ±10%, 50/60Hz
Power Consumption	500VA max.
Dimensions & Weight	330(W) x 148(H) x 452(D) mm (Max.), approx.19kg(Max)
* TIMER Accuracy: ± (100ppm + 20ms)
**The “TIMER OFF” can only be performed when the tester is in the special MANU mode
