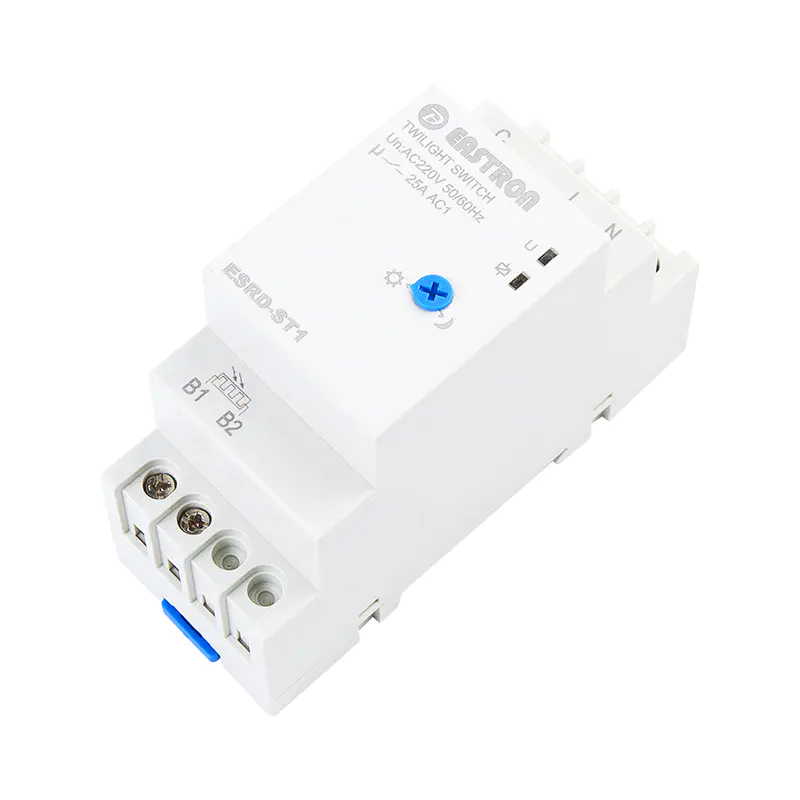

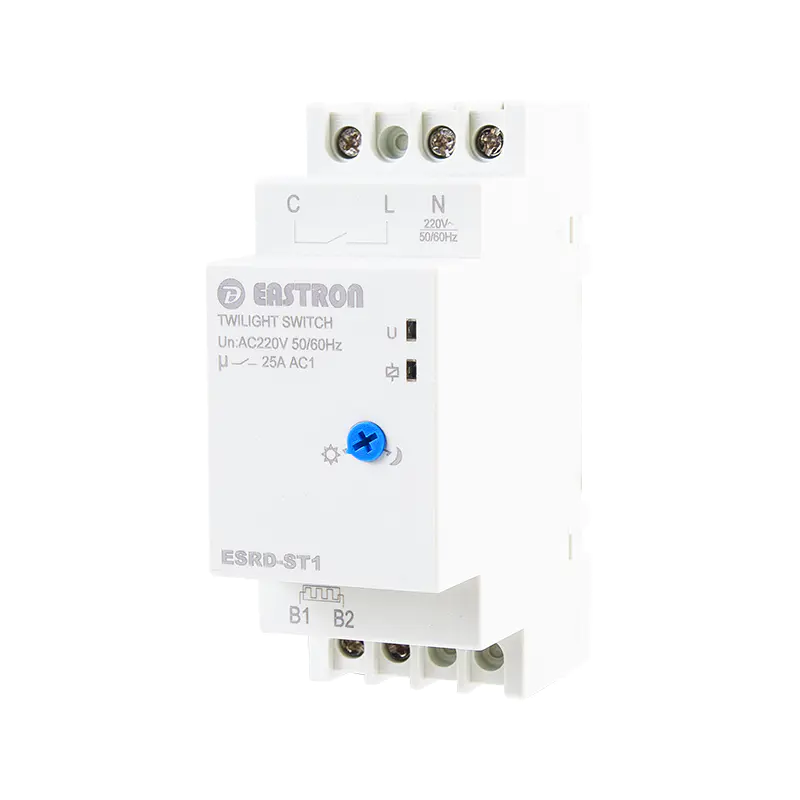

Esrd-st1 Eastron ESRD-ST1
- Modular design, 36mm wide housing
- Sensitivity adjustment from 2 to 100 Iux
- Eternal light sensor included in delivery
- Fixed switching on and off delay
- LED indication for power supply and relay status
| Technical data |
| Rated contol voltage |
AC220V |
| Frequency |
50/60Hz |
| Sensiticity threahold |
2~100Iux adjustable |
| Switch-on delay |
2-5s |
| Switch-off delay |
10-15s |
| Hysteresis(switching off/on ratio) |
1.2 |
| Output contact |
1 NO |
| Current rating |
25A/250V AC 1 |
| Incandescent Iamp load |
3000W |
| Halogen lamp load |
3000W |
| Fluorescent lamp load(compensated ) |
1000W |
| Fluorescent lamp load(uncompensated ) |
1300W |
| Protection degree |
Terminal: IP20, Sensor: IP65 |
