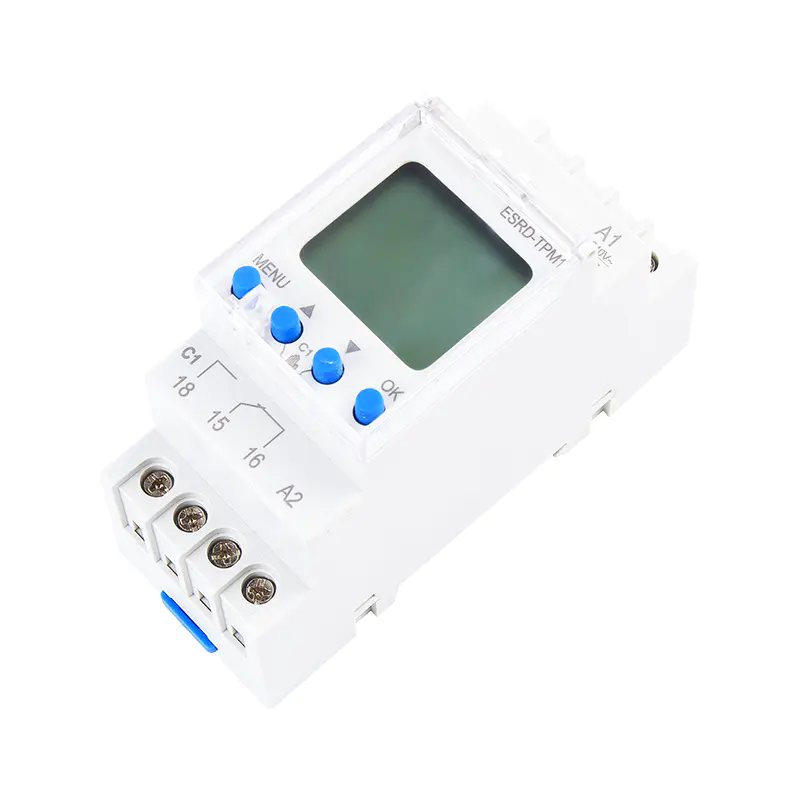

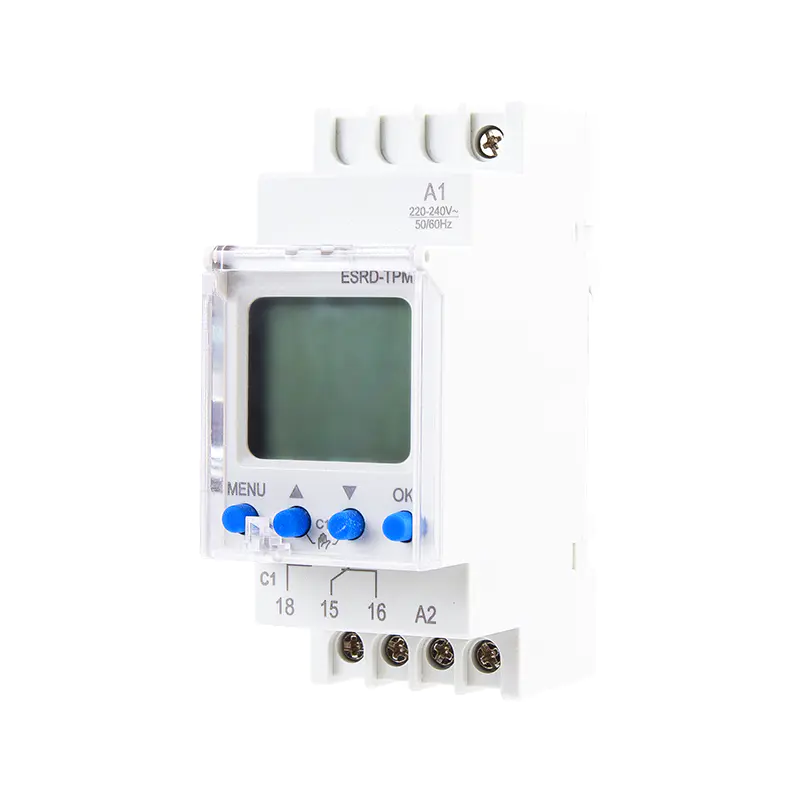

Esrd-tpm1 Eastron ESRD-TPM1
- Single Channel
- Astronomical and annual programs
- 10 year power reserve (lithium battery)
- 40 programa
- Automatic summer/winter time switchover
- Holiday mode
- Random mode
- Multi-language
- Automatic transfer of weekdays
- 24-264V AC/DC input supply
- Sealable cover of the front panel easy setting by 4 keys
| Technical data |
| Supply terminals |
A1~A2 |
| Rated voltage |
AC220-240V |
| Rated frequency |
50/60Hz |
| Power consumption |
1W |
| Supply voltage tolerance |
±10% |
| Number of channels |
Single channel |
| Number of programs |
40 |
| Program |
weekly, annual and astronomical |
| Mode of work |
manual, automtic, holiday, random |
| Summer/ winter time |
off, automtic changeover |
| Time tolerance |
≤1s/day at 20℃ |
| Power reserve |
10 years |
| Data readout |
LCD display with backlit |
| Number of contacts |
1C/O |
| Current of contacts |
16A/250V AC1 |
| Switching capacity |
4000VA/AC1, 384W/DC |
| Mechanical life |
106 |
| Electrical life |
105 |
| Rated insulation voltage |
250V |
| Standard |
IEC60947-1/IEC60947-2-7 |
| Dimensions |
90*36*64mm |
