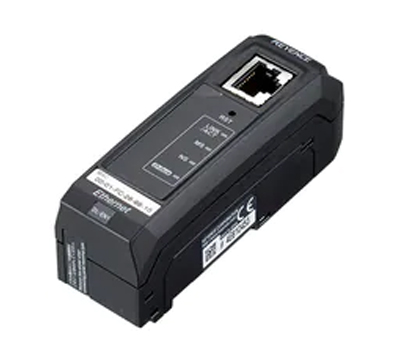

Ethernet TCP/IP Compatible Network Unit

Model

DL-EN1

Ethernet
specifications

Compliant standards

IEEE802.3u (100BASE-TX)

Transmission speed

100Mbps (100BASE-TX)

Transmission interface

STP cable or Category 5 or higher UTP cable (100BASE-TX)

Maximum cable length

100 m (Distance between DL-EN1 and Ethernet switch)

Performance
specifications

Socket communication,
no-protocol commands,
ASCII

TCP socket 1
Port number can be set between 1 and 65535
8500: Reserved for the system
Initial value: 64000

Sensor
connection
specifications

Connectable
sensors

Sensor amplifiers with D-bus support^*1

Number of
connectable
sensor units

15 units max^*2

Indicator lamps

Link/activity indicator (LINK/ACT): Green LED
Module status indicator (MS): 2-color (green/red) LED
Network status indicator (NS): 2-color (green/red) LED
Sensor communication indicator (D-bus): 2-color (green/red) LED

Power voltage

20 to 30 VDC ±10%, including ripple (p-p)10%
(supplied from the connected sensor amplifiers)

Power consumption

1500 mW or less (at 30 V 50 mA max)

Environmental resistance

Pollution degree

2

Ambient temperature

-20 to +55 °C -4 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Material

Main unit case: Polycarbonate

Weight

Approx. 70 g
