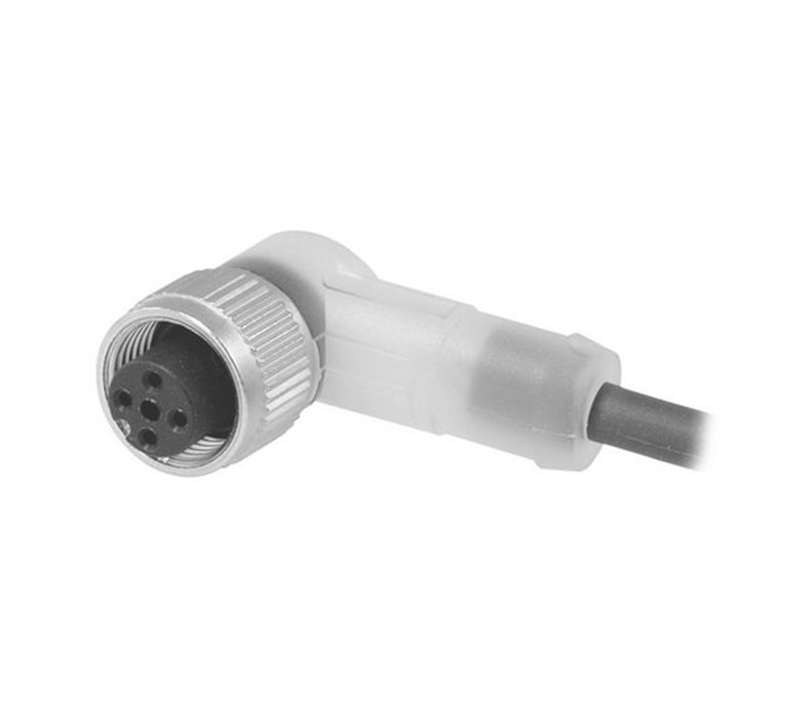

Female connector M12 x 1 with attached TPE-cable, Food & Beverage Baumer ESW 33AH0500
| General Data | |
| Nominal Current IN | 4 A |
| Nominal Voltage UN | 250 V |
| Number of Positions | 4 |
| Volume Resistance | ≤ 5 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Length of Cable | See Listing |
| Stripping Length of the Free Conductor End | 0 mm (cable cut flush to length with no conductor preparation) |
| Ambient Temperature (Operation) | -40 ... +105 °C |
| General Characteristics | |
| Coding | A-standard |
| Pollution Degree | 3 |
| Degree of Protection | IP65, IP67, IP68, IP69 |
| Contact Material | Metal, CuZn |
| Contact Surface Material | Gold-plated |
| Contact Carrier Material | Plastic, PP, GY |
| Material of Grip Body | Plastic, PP, GY |
| Coupling Nut Material | Stainless steel, V4A |
| Sealing Material | EPDM |
| Mechanical Life-Cycle | >100 mating cycles |
| Conductor Data | |
| Cable Type | TPE halogen-free |
| Conductor Cross Section | 0.34 mm² |
| AWG Signal Line | 22 |
| Conductor Structure, Signal Line | 42x0.10 mm |
| Core Diameter Including Insulation | 1.27 ± 0.02 mm |
| Thickness, Insulation | Approx. 0.25 mm |
| External Cable Diameter | 4.6 ± 0.15 mm |
| Wire Colors | Brown, white, blue, black |
| External Sheath, Color | Light grey, similar RAL7035 |
| Conductor Data (Cont.) | |
| Nominal Voltage, Conductor | ≤ 240 VAC |
| Test Voltage, Conductor | ≥ 2000 V |
| Outer Sheath, Material | TPE |
| Material Conductor Insulation | TPE |
| Conductor Material | Cu-ETP1 baresoft |
| Smallest Bending Radius, Movable Installation | 46 mm |
| Bending Radius Fixed | 23 mm |
| Number of Cycles | ≥ 4 mio. |
| Traversing Permitted | ≤ 10 m at max. acceleration |
| Permissible Speed at Horizontal Traverse (5m) | ≤ 180 m/min |
| Acceleration | ≤ 10 m/s² |
| Ambient Temperature (Operation) | -40 ... +105 °C (cable, fixed installation) -25 ... +105 °C (cable, flexible installation) -25°C…+60°C (drag chain) |
| Special Properties | Seawater resistant, Recyclable, LABS free, RoHS compliant, Ozone resistant, UV resistant, Hydrolysis proof, Drag chain-adapted, Torsion resistant, Halogen free, Excellent acid-and alkali resistant, Verified resistance against P3-topactive, Flexibility at low temperature, Increased thermal load |
