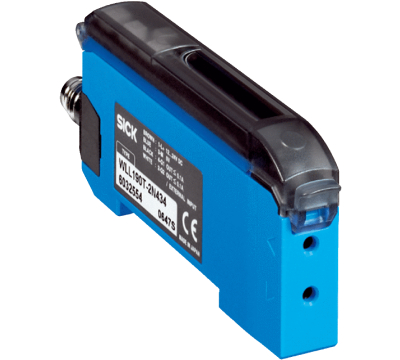

    Fiber-optic Sensors SICK WLL190T-2

    Type:WLL190T-2F434
    Part No.:6032567
    Fiber-optic Sensors SICK WLL190T-2 WLL190T-2F434

    Features
    Type Expansion unit
    Dimensions (W x H x D) 10.5 mm x 34.8 mm x 68.9 mm
    Housing design (light emission) Rectangular
    Sensing range max. 0 m ... 4 m, Through-beam system 1) 2)
    Sensing range

    0 mm ... 480 mm, Proximity system 3) 4)

    0 m ... 2 m, Through-beam system 5)

    Focus Approx. 65° 6)
    Type of light Visible red light
    Light source LED 7)
    Angle of dispersion Approx. 65° 6)
    Wave length 650 nm
    Adjustment

    Menu-controlled

    Single teach-in button

    Cable

    Indication Display
    Display LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters
    • 1) Sensing range at response time 2 ms. Reduction at shorter response time (see LL3/ WLL190T-2 table).
    • 2) LL3-TB02 and tip adapter LL3-TA01.
    • 3) Object with 90% remission (based on standard white DIN 5033). Sensing range with 2 ms response time. Reduction for shorter response time (see tables LL3/WLL190T-2).
    • 4) LL3-DB01.
    • 5) LL3-TB01.
    • 6) See LL3 fiber-optic data.
    • 7) Average service life: 100,000 h at TU = +25 °C.

    Mechanics/electronics
    Supply voltage 10 V DC ... 24 V DC 1)
    Ripple ≤ 10 % 2)
    Switching output PNP 3) 4)
    Switching mode Light/dark switching 3) 4)
    Switching mode selector Manually selectable
    Output current Imax. ≤ 100 mA
    Response time ≤ 2 ms, ≤ 60 µs, ≤ 250 µs
    Switching frequency

    8,333 Hz

    2,000 Hz

    250 Hz

    Time functions

    Without time delay

    Off delay

    On delay

    One shot

    Delay time Programmable, 0 ms ... 9,999 ms
    Connection type Male connector M8, 4-pin
    Circuit protection

    A 5)

    B 6)

    C 7)

    D 8)

    Protection class III
    Weight 25 g
    Housing material Plastic, ABS/PC
    Enclosure rating IP50 9)
    Ambient operating temperature –25 °C ... +55 °C 10)
    Ambient storage temperature –40 °C ... +70 °C
    • 1) +- 10%.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Q1, Q2.
    • 4) Selectable Q2, external teach or counter reset.
    • 5) A = VS connections reverse-polarity protected.
    • 6) B = inputs and output reverse-polarity protected.
    • 7) C = interference suppression.
    • 8) D = outputs overcurrent and short-circuit protected.
    • 9) With correctly attached fibre-optic cable LL3 and closed protection hood.
    • 10) Operating temperature fluctuates according to number of devices connected: 4–8 devices: –25 °C ... +50 °C (output current 50 mA) / 9–16 devices: –25 °C ... +45 °C (output current 20 mA).

    Safety-related parameters
    MTTFD 290 years
    DCavg 0%


    Classifications
    ECl@ss 5.0 27270905
    ECl@ss 5.1.4 27270905
    ECl@ss 6.0 27270905
    ECl@ss 6.2 27270905
    ECl@ss 7.0 27270905
    ECl@ss 8.0 27270905
    ECl@ss 8.1 27270905
    ECl@ss 9.0 27270905
    ECl@ss 10.0 27270905
    ECl@ss 11.0 27270905
    ETIM 5.0 EC002651
    ETIM 6.0 EC002651
    ETIM 7.0 EC002651
    UNSPSC 16.0901 39121528
