    Sensor

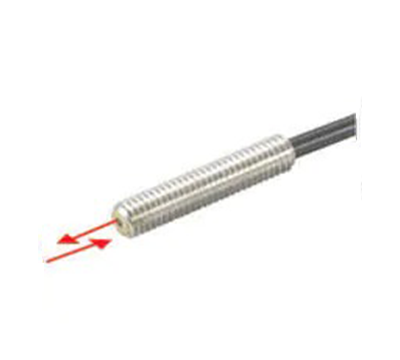

    Fiber Unit, Reflective

    Model No.:Keyence FU-21X

    Specifications


    Model

    FU-21X*1

    Size

    M3

    Detection arrangement

    Coaxial

    Fibre unit length

    50 cm19.685" cannot be cut

    Shape

    Straight

    Minimum bend radius

    R25 mm0.984"

    Minimum detectable object

    Gold wire with a diameter of 0.005 mm0.0002" *2

    Environmental resistance

    Ambient temperature

    -40 to +70 °C -40 to 158 °F

    Weight

    Approx. 4 g

    *1 For details on the detecting distance, see the fiber amplifier catalog.
    *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
