    HomeAutomation & FacilitySensorFiber Optic Sensor

    Sensor

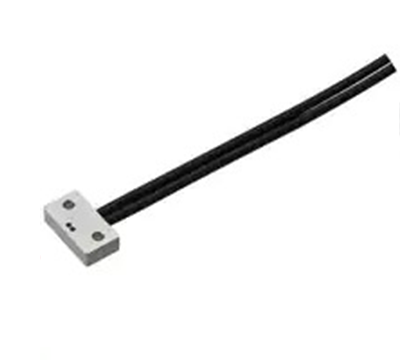

    Fiber Unit Reflective type

    Model No.：Keyence FU-43TZ

    add to cart Inquiry Now
    Specifications


    Model

    FU-43TZ*1

    Type

    fibre unit

    Shape

    Retro-reflective

    Minimum bend radius

    R2 mm

    Minimum detectable object

    Gold wire with a diameter of 0.005 mm0.0002" *2

    Environmental resistance

    Enclosure rating

    IP67 (IEC60529)

    Ambient temperature

    -40 to +50 °C -40 to 122 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Material

    Case : SUS303
    Core fibre : Acrylic
    Fibre sheath : Polyethylene

    Weight

    Approx. 22 g

    *1 For details on the detecting distance, see the fiber amplifier catalog.
    *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
