    Sensor

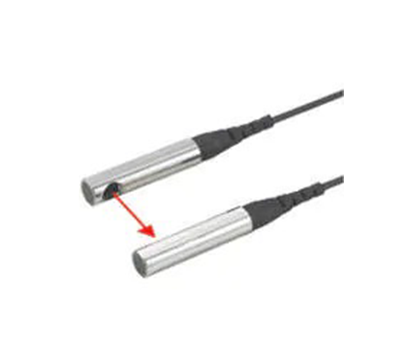

    Fiber Unit Thrubeam type

    Model No.:Keyence FU-16

    Specifications


    Model

    FU-16*1

    Optical axis diameter
    (Standard target to be detected)

    ø2.5 mm0.098"

    Beam emitting direction

    Side

    Aperture angle

    Approx 6°

    Fibre unit length

    2 m78.74" free-cut

    Fibre unit diameter

    ø1.0

    Minimum bend radius

    R10 mm0.394"

    Minimum detectable object

    Object with a diameter of 0.1 mm0.004"*2

    Environmental resistance

    Ambient temperature

    -40 to +70 °C -40 to 158 °F

    Weight

    Approx. 8 g

    *1 For details on the detecting distance, see the fiber amplifier catalog.
    *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
