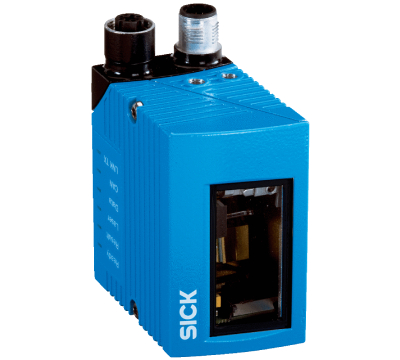

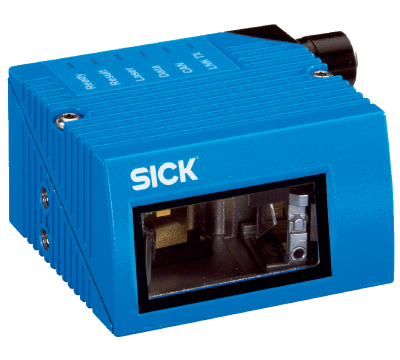

    Fixed Mount Bar Code Scanners SICK CLV62x / CLV620

    Type:CLV620-0120
    Part No.:1041547
    add to cart Inquiry Now
    Fixed Mount Bar Code Scanners SICK CLV62x / CLV620 CLV620-0120

    Features
    Version Mid Range
    Connection type Ethernet
    Reading field Front
    Scanning method Line scanning
    Sensor type Line scanner
    Optical focus Fixed focus
    Light source
    Light spot Laser, Visible, Red, 655 nm
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 50°
    Scanning frequency 400 Hz ... 1,200 Hz
    Code resolution 0.2 mm ... 1 mm
    Reading distance 60 mm ... 365 mm 1)
    • 1) For details see reading field diagram.

    Mechanics/electronics
    Connection type 2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector
    Supply voltage 10 V DC ... 30 V DC
    Power consumption 4.5 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Front screen Glass
    Enclosure rating IP65 (DIN 40 050)
    Protection class III (VDE 0106/IEC 1010-1)
    Weight 205 g, without connecting cable
    Dimensions (L x W x H) 61 mm x 66 mm x 38 mm 1)
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 2)
    • 1) Swivel connector is 15 mm longer.
    • 2) At 25 °C.

    Performance
    Readable code structures 1D codes
    Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART620)
    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval

    1,500

    500 (for multiplexer function in CAN operation)
    No. of multiple readings 1 ... 99


    Interfaces
    Ethernet ✔ , TCP/IP
    Function Host, AUX
    Data transmission rate 10/100 MBit/s
    PROFINET ✔
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    EtherNet/IP™ ✔
    Data transmission rate 10/100 MBit/s
    EtherCAT® ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Serial ✔ , RS-232, RS-422, RS-485
    Function Host, AUX
    Data transmission rate 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    CANopen ✔
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™ ✔
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
    Digital outputs 2 (Via optional CMC600 parameter memory in CDB620/CDM420)
    Reading pulse Digital inputs, non-powered, serial interface, auto pulse, CAN
    Optical indicators

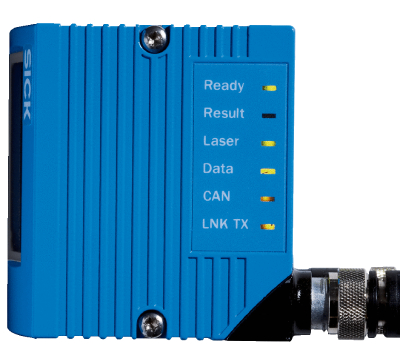

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX
    Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
    Configuration software SOPAS ET


    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
    Vibration resistance EN 60068-2-6 (1995)
    Shock resistance EN 60068-2-27 (1993)
    Ambient operating temperature 0 °C ... +40 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on bar code
    Bar code print contrast (PCS) ≥ 60 %


    Classifications
    ECl@ss 5.027280102
    ECl@ss 5.1.427280102
    ECl@ss 6.027280102
    ECl@ss 6.227280102
    ECl@ss 7.027280102
    ECl@ss 8.027280102
    ECl@ss 8.127280102
    ECl@ss 9.027280102
    ECl@ss 10.027280102
    ECl@ss 11.027280102
    ETIM 5.0EC002550
    ETIM 6.0EC002550
    ETIM 7.0EC002550
    ETIM 8.0EC002550
    UNSPSC 16.090143211701
