    Sensor

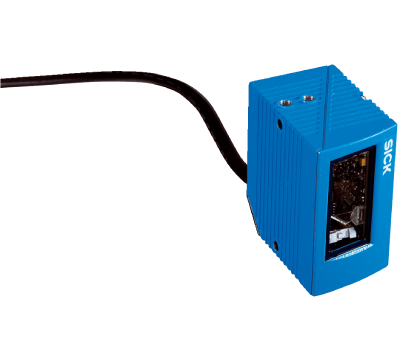

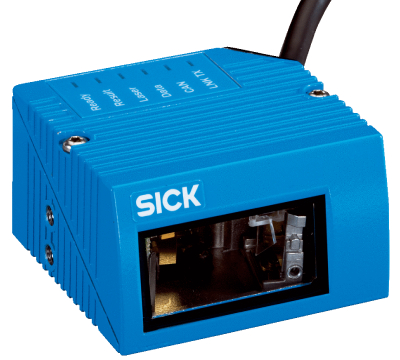

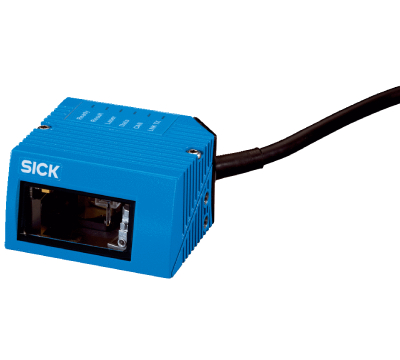

    Fixed mount barcode scanners SICK CLV62x

    Type:CLV622-1000
    Part no.:1041794
    Features
    Version Short Range
    Connection type Cable
    Reading field Front
    Scanning method Raster scanning
    Sensor type Raster scanner
    Optical focus Fixed focus
    Light source Light spot, laser, Visible, Red, 655 nm
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 50°
    Scanning frequency 400 Hz ... 1,200 Hz
    Code resolution 0.15 mm ... 0.5 mm
    Reading distance 55 mm ... 200 mm 1)
    Raster height, number of lines, at distance 15 mm, 8, 200 mm
    • 1) For details see reading field diagram.


    Mechanics/electronics
    Connection type 1 x 15-pin D-Sub HD male connector (0.9 m)
    Supply voltage 10 V DC ... 30 V DC
    Power consumption 4.5 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Window material Glass
    Enclosure rating IP65 (DIN 40 050)
    Protection class III (VDE 0106/IEC 1010-1)
    Weight 225 g, with connecting cable
    Dimensions (L x W x H) 61 mm x 66 mm x 38 mm
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 1)
    • 1) At 25 °C.


    Performance
    Readable code structures 1D codes
    Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
    Code printing process Label (printed codes)
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART620)

    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval

    1,500

    500 (for multiplexer function in CAN operation)

    No. of multiple readings 1 ... 99


    Interfaces
    PROFINET
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    Function PROFINET Single Port, PROFINET Dual Port
    EtherCAT®
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Serial ✔ , RS-232, RS-422, RS-485
    Function Host, AUX
    Data transmission rate 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    CANopen
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
    Digital outputs 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420)
    Reading pulse Digital inputs, non-powered, serial interface, auto pulse, CAN
    Optical indicators

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX

    Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
    Configuration software SOPAS ET


    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
    Vibration resistance EN 60068-2-6 (1995)
    Shock resistance EN 60068-2-27 (1993)
    Ambient operating temperature 0 °C ... +40 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on barcode
    Bar code print contrast (PCS) ≥ 60 %


    General notes
    Note on use For Ethernet connection please use an Ethernet version of CLV6xx


    Classifications
    ECl@ss 5.0 27280102
    ECl@ss 5.1.4 27280102
    ECl@ss 6.0 27280102
    ECl@ss 6.2 27280102
    ECl@ss 7.0 27280102
    ECl@ss 8.0 27280102
    ECl@ss 8.1 27280102
    ECl@ss 9.0 27280102
    ECl@ss 10.0 27280102
    ECl@ss 11.0 27280102
    ECl@ss 12.0 27280102
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002550
    ETIM 8.0 EC002550
    UNSPSC 16.0901 43211701
