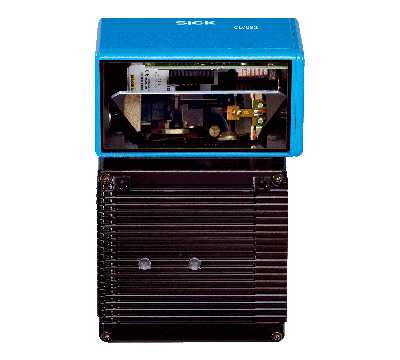

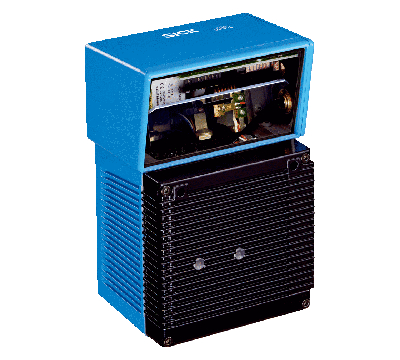

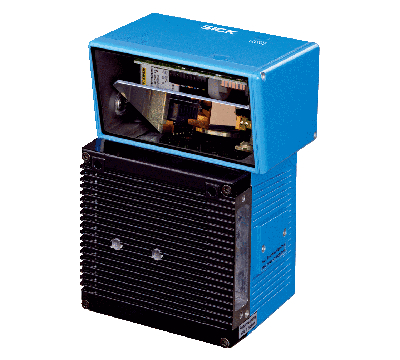

    Fixed mount barcode scanners SICK CLV69x / CLV692-0/1

    Type:CLV692-1001
    Part No.:1056611
    add to cart Inquiry Now
    Features
    Version High Density
    Connection type Depending on the cloning plug used
    Reading field Oscillating mirror
    Scanning method Line scanning
    Sensor type Line scanner
    Optical focus Auto focus (alternative: dynamic focus control)
    No. of distance configurations ≤ 8
    Focus adjustment time ≤ 20 ms
    Focus trigger source Data interface / Digital inputs
    Light source
    Light spot Laser, Visible, Red, 660 nm
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 50°
    Scanning frequency 400 Hz ... 1,200 Hz
    Code resolution 0.17 mm ... 0.4 mm
    Reading distance 400 mm ... 1,600 mm 1)
    Oscillating mirror functions Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
    Oscillation frequency 0.5 Hz ... 4 Hz
    Angle of deflection –20° ... 20° (can be adjusted via software)
    Heating ✔
    Front screen heating ✔
    • 1) For details see reading field diagram.


    Mechanics/electronics
    Connection type Depending on the cloning plug used
    Supply voltage 21.6 V DC ... 28.8 V DC
    Power consumption 80 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Front screen Glass
    Enclosure rating IP65 (EN 60529/A1 (2002-02))
    Weight 2,200 g
    Dimensions (L x W x H) 182 mm x 128 mm x 97 mm
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 1)
    • 1) At 25 °C.


    Performance
    Readable code structures 1D codes
    Bar code types Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART decoder)
    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval 5,000
    No. of multiple readings 1 ... 100


    Interfaces
    Ethernet ✔ , TCP/IP
    Remark Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
    Function Host, AUX
    Data transmission rate 10/100 MBit/s
    PROFINET ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    Remark Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
    Function PROFINET Single Port, PROFINET Dual Port
    EtherNet/IP™ ✔
    Remark Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
    Data transmission rate 10/100 MBit/s
    Serial ✔ , RS-232, RS-422, RS-485
    Remark Only with cloning plug D-Sub and Ethernet
    Function Host, AUX (only RS-232)
    Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™ ✔
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 6 (“Sensor 1” ... “Sensor 6”)
    Digital outputs 4 (“Result 1” ... “Result 4”)
    Reading pulse Digital inputs, serial interface, auto pulse, CAN
    Optical indicators

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX

    Bar graph for displaying the reading rate percentage (10 LEDs)
    Control elements 2 buttons
    Parameter storage Integrated in cloning plug
    Configuration software SOPAS ET


    Ambient data
    Electromagnetic compatibility (EMC)

    EN 61000-6-4 (2007-01) + A1 (2011)

    EN 61000-6-2:2005-08
    Vibration resistance EN 60068-2-6:2008-02
    Shock resistance EN 60068-2-27:2009-05
    Ambient operating temperature –35 °C ... +35 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on barcode
    Bar code print contrast (PCS) ≥ 60 %


    Classifications
    ECl@ss 5.027280102
    ECl@ss 5.1.427280102
    ECl@ss 6.027280102
    ECl@ss 6.227280102
    ECl@ss 7.027280102
    ECl@ss 8.027280102
    ECl@ss 8.127280102
    ECl@ss 9.027280102
    ECl@ss 10.027280102
    ECl@ss 11.027280102
    ETIM 5.0EC002550
    ETIM 6.0EC002550
    ETIM 7.0EC002550
    ETIM 8.0EC002550
    UNSPSC 16.090143211701
