    Sensor

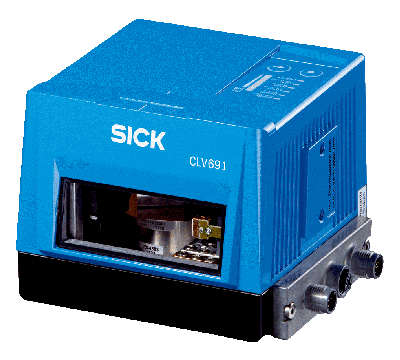

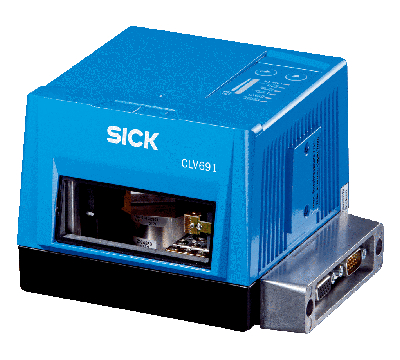

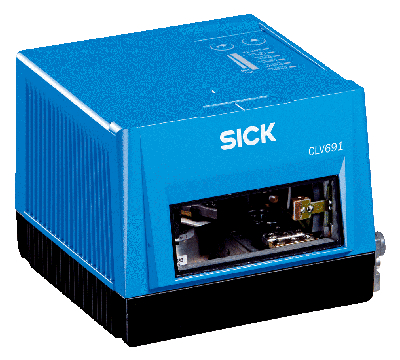

    Fixed mount barcode scanners SICK CLV69x

    Type:CLV691-0001
    Part no.:1056606
    Features
    Version Low Density
    Connection type Depending on the cloning plug used
    Reading field Front
    Scanning method Line scanning
    Sensor type Line scanner
    Optical focus Auto focus (alternative: dynamic focus control)
    No. of distance configurations ≤ 8
    Focus adjustment time ≤ 20 ms
    Focus trigger source Data interface / Digital inputs
    Light source
    Light spot Laser, Visible, Red, 660 nm
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 60°
    Scanning frequency 400 Hz ... 1,200 Hz
    Code resolution 0.35 mm ... 1.2 mm
    Reading distance 500 mm ... 2,200 mm 1)
    Heating
    Front screen heating
    • 1) For details see reading field diagram.

    Mechanics/electronics
    Connection type Depending on the cloning plug used
    Supply voltage 21.6 V DC ... 28.8 V DC
    Power consumption 78 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Window material Glass
    Enclosure rating IP65 (EN 60529/A1 (2002-02))
    Weight + 1,500 g
    Dimensions (L x W x H) 117 mm x 117 mm x 94 mm
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 1)
    • 1) At 25 °C.

    Performance
    Readable code structures 1D codes
    Bar code types Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART decoder)

    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval 5,000
    No. of multiple readings 1 ... 100

    Interfaces
    Ethernet ✔ , TCP/IP
    Remark Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
    Function Host, AUX
    Data transmission rate 10/100 MBit/s
    PROFINET
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    Remark Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
    Function PROFINET Single Port, PROFINET Dual Port
    EtherNet/IP™
    Remark Only with cloning plug I/O, CAN IN/OUT or CAN Redundant
    Data transmission rate 10/100 MBit/s
    Serial ✔ , RS-232, RS-422, RS-485
    Remark Only with cloning plug D-Sub and Ethernet
    Function Host, AUX (only RS-232)
    Data transmission rate 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 6 (“Sensor 1” ... “Sensor 6”)
    Digital outputs 4 (“Result 1” ... “Result 4”)
    Reading pulse Digital inputs, serial interface, auto pulse, CAN
    Optical indicators

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX

    Bar graph for displaying the reading rate percentage (10 LEDs)

    Control elements 2 buttons
    Parameter storage Integrated in cloning plug
    Configuration software SOPAS ET

    Ambient data
    Electromagnetic compatibility (EMC)

    EN 61000-6-4 (2007-01) + A1 (2011)

    EN 61000-6-2:2005-08

    Vibration resistance EN 60068-2-6:2008-02
    Shock resistance EN 60068-2-27:2009-05
    Ambient operating temperature –35 °C ... +35 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on barcode
    Bar code print contrast (PCS) ≥ 60 %

    Classifications
    ECl@ss 5.0 27280102
    ECl@ss 5.1.4 27280102
    ECl@ss 6.0 27280102
    ECl@ss 6.2 27280102
    ECl@ss 7.0 27280102
    ECl@ss 8.0 27280102
    ECl@ss 8.1 27280102
    ECl@ss 9.0 27280102
    ECl@ss 10.0 27280102
    ECl@ss 11.0 27280102
    ECl@ss 12.0 27280102
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002550
    ETIM 8.0 EC002550
    UNSPSC 16.0901 43211701
