Fastening
Fixed Tightening Shaft With Straight Shank

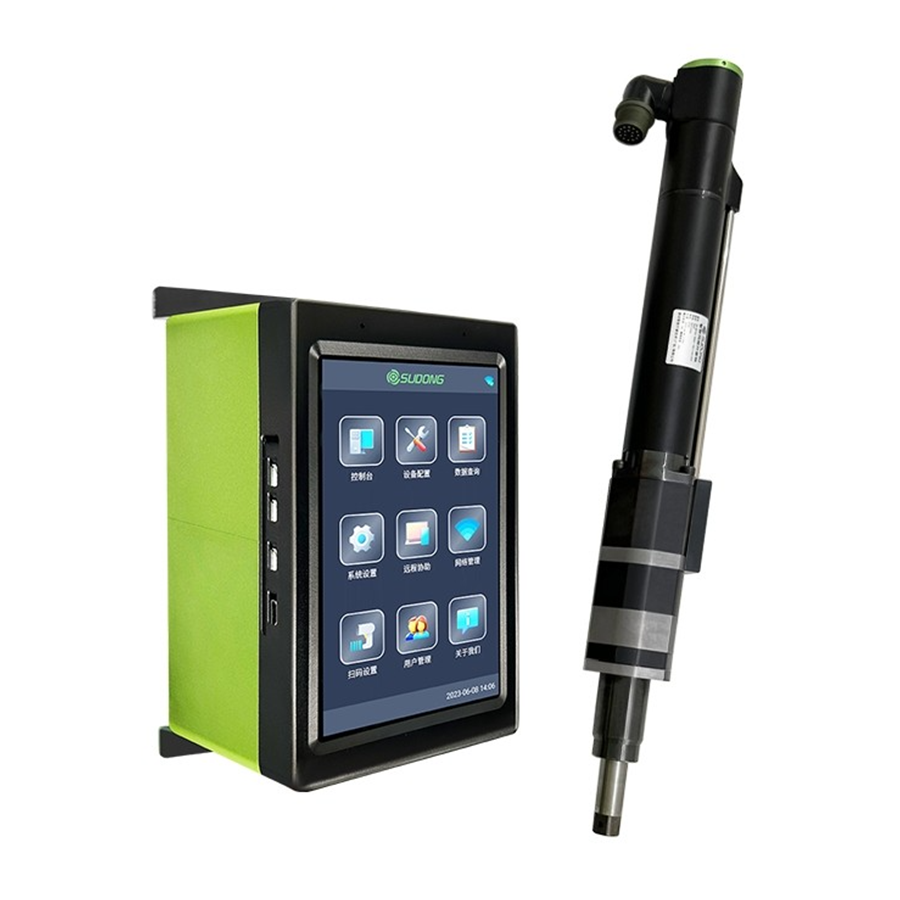

Straight shank tightening shaft equipped with angle and torque sensors
| Model | Trip | Torque Range (Nm) | Torque Range (Ftlb) | Speed | Minimum center distance | Weight (Kg) | Weight (Lb) | Axis head size |
|---|---|---|---|---|---|---|---|---|
| SD-QST34-8CT-T50-L150-H6 | 50mm | 2-8 | 1.5-6 | 3000r/min | 34mm | 2 | 4.4 | 1/4 |
| SD-QST34-20CT-T50-L150-H10 | 50mm | 4-20 | 2.9-14.7 | 1000r/min | 34mm | 2 | 4.4 | 3/8 |
| SD-QST42-20CT-T50-L134-H10 | 50mm | 6-20 | 4-14 | 2000r/min | 43mm | 3.1 | 6.9 | 3/8 |
| SD-QST42-50CT-T50-L134-H13 | 50mm | 10-50 | 7-35 | 700r/min | 43mm | 3.8 | 8.4 | 1/2 |
| SD-QST50-90CT-T50-L137-H13 | 50mm | 20-90 | 15-65 | 650r/min | 51mm | 5.8 | 12.7 | 1/2 |
| SD-QST50-150CT-T50-L137-H13 | 50mm | 30-150 | 22-110 | 380r/min | 51mm | 5.8 | 12.8 | 1/2 |
| SD-QST62-150CT-T50-L152-H13 | 50mm | 30-150 | 22-110 | 450r/min | 63mm | 10.2 | 22.5 | 1/2 |
| SD-QST62-230CT-T50-L152-H19 | 50mm | 40-230 | 29-170 | 330r/min | 63mm | 10.2 | 22.5 | 3/4 |
| SD-QST62-350CT-T50-L152-H19 | 50mm | 50-350 | 37-258 | 220r/min | 63mm | 10.2 | 22.5 | 3/4 |
| SD-QST80-450CT-T50-L146-H19 | 50mm | 90-450 | 66-332 | 260r/min | 81mm | 16.7 | 37 | 3/4 |
| SD-QST80-600CT-T50-L146-H19 | 50mm | 120-600 | 88-442 | 200r/min | 81mm | 17 | 37 | 3/4 |
| SD-QST90-750CT-T50-L152-H25 | 50mm | 150-750 | 111-553 | 150r/min | 91mm | 25 | 55 | 1 |
| SD-QST90-1000CT-T50-L152-H25 | 50mm | 200-1000 | 147-737 | 130r/min | 91mm | 26 | 57 | 1 |
| SD-QST95-1750CT-T50-L149-H138 | 50mm | 350-1750 | 258-1291 | 60r/min | 96mm | 28 | 61.7 | 11/2 |
| Extended spring travel of 76mm and 100mm | ||||||||
| SD-QST42-20CT-T76-L189-H10 | 76mm | 6-20 | 4-14 | 2000r/min | 43mm | 3.1 | 6.9 | 3/8 |
| SD-QST42-50CT-T76-L189-H13 | 76mm | 10-50 | 7-35 | 700r/min | 43mm | 3.8 | 8.4 | 1/2 |
| SD-QST50-90CT-T76-L200-H13 | 76mm | 20-90 | 15-65 | 650r/min | 51mm | 5.8 | 12.7 | 1/2 |
| SD-QST50-150CT-T76-L200-H13 | 76mm | 30-150 | 22-110 | 380r/min | 51mm | 5.8 | 12.8 | 1/2 |
| SD-QST62-230CT-T76-L200-H19 | 76mm | 40-230 | 29-170 | 330r/min | 63mm | 10.2 | 22.5 | 3/4 |
| SD-QST62-350CT-T76-L200-H19 | 76mm | 50-350 | 37-258 | 220r/min | 63mm | 10.2 | 22.5 | 3/4 |
| SD-QST80-450CT-T76-L214-H19 | 76mm | 90-450 | 66-332 | 260r/min | 81mm | 17 | 37 | 3/4 |
| SD-QST80-600CT-T76-L214-H19 | 76mm | 120-600 | 88-442 | 200r/min | 81mm | 17 | 37 | 3/4 |
| SD-QST90-750CT-T76-L176-H25 | 76mm | 150-750 | 111-553 | 150r/min | 63mm | 29 | 64 | 1 |
| SD-QST90-1000CT-T76-L176-H25 | 76mm | 200-1000 | 147-737 | 130r/min | 91mm | 26 | 57 | 1 |
| SD-QST42-50CT-T100-L191-H13 | 100mm | 10-50 | 7-35 | 700r/min | 43mm | 3.8 | 8.4 | 1/2 |
| SD-QST50-150CT-T100-L186-H13 | 100mm | 30-150 | 22-110 | 380r/min | 51mm | 5.8 | 12.8 | 1/2 |
