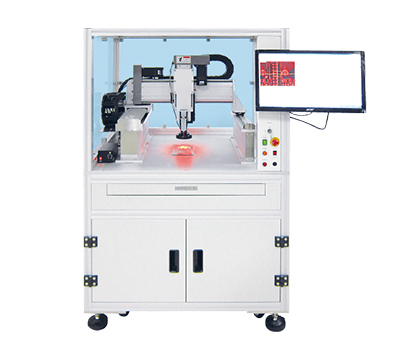

FL Series Auto Alignment Dispensing System 331FL
Special specifications and sizes can be customized. Up to 4Mx4M working range.
Features
Features
- Automatic offset of dispensing route.
- Increased production efficiency.
- Ideal for irregular dispensing route.
- High resolution 0.001mm.
- Precision operation.
- AutoCAD DXF Transfer to Programming.
- Optional LED light.
- Optional Auto Alignment Tip Position After Replacing.
- Optional Auto Workpiece Height Detect.
- Apply on Phone product/ CMOS / Semi-Conductor Seal /
- Communication Products / LED / LCD.
Specification
| Model | 331FL |
|---|---|
| Working Area X / Y / Z (mm) (*1) | 300 / 300 / 100 |
| Load Worktable Y-Axis / Z-Axis | 30 kg / 5 kg |
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 500 / 300 |
| Resolution | 0.001 mm / Axis |
| Repeatability | +/- 0.01 mm / Axis |
| Program Capacity | 4000 steps for each program; Unlimited programs |
| Data Storage Type | PC HD Storage |
| Display | 19'' LCD Monitor |
| Motor System | DC servo motor |
| Control Method | PTP & CP |
| Interpolation Function | 3 axis |
| Programming Method | Windows software |
| Computer OS | Windows 10 |
| I/O Signals Port | 10 Inputs / 10 Outputs |
| Power Supply | 100 ~ 230 VAC , 500 W |
| Working Temperature | 0 - 40°C |
| Relative Humidity (no condensation) | 20 - 90% No condensation |
| Dimensions (WxDxH mm) | 910 x 755 x 1400 |
| Robot Weight | 80 kg |
*1: Actual operation XY travel needs to deduct the XY distance from the center of the CCD to the needle.
※Specification and Pictures are for reference only, call our sales to have latest data.
