Energy Meter & Current Transformer

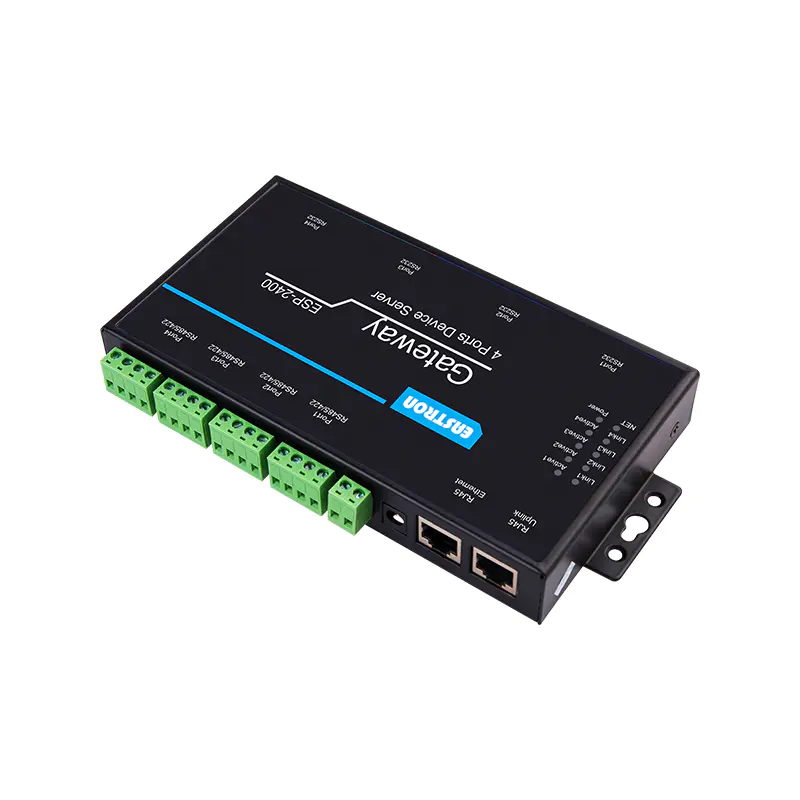

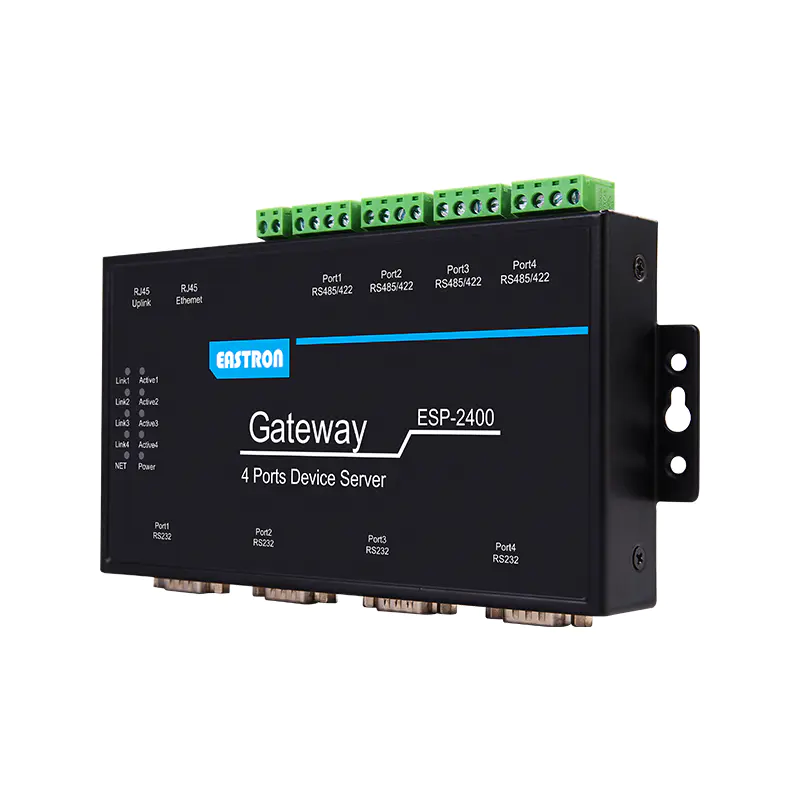

Four Rs485/232/422 Ports To Ethernet Protocol Converter For Iot Solutions Eastron ESP-2400
- 4 dependent RS232/422/485 Interface.
- Modbus TCP/IP-Modbus TCP converter
- 10/100M Ethernet Auto-Negotiation
- Easy Configuration Through a Web Interface
- Security Protocol Such As TLS/AES/DES3
- Support Web OTA Wirelss Upgrade
| Product parameters |
| Basic Frequency |
320MHz |
| Flash |
16MB |
| SDRAM |
32MB |
| Operating System |
Linux |
| Ethernet |
|
| Interface Standard |
2 RJ45 with LED |
| Rate |
10/100 Base-T Auto-Negotiation |
| Protection |
8KV Contact discharge 15KV Air discharge |
| Network Protocol |
IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Telnet, uPNP |
| Security Protocol |
TLSv1.2，AES- 128Bit，DES3，SSL |
| Wi-Fi Security |
|
| Port Number |
4 RS232/485/422） |
| Interface Standard |
RS232：DB9 RS485/RS422：5.08mm |
| Data Bits |
8 |
| Stop Bit |
1 |
| Check Bit |
None, Even, Odd |
| Baud Rate |
TTL：2400 bps~460800 bps |
| Flow Control |
No Flow control Software Xon/ Xoff flow control |
| Buffer |
8K |
| Configuration |
Web or IOTManagerPC Software |
| Virtual Serial |
Windows XP/Vista/7/8/10(32bit\64bit)、Win Server 2003/2008/2012 |
| Size |
90*200*25mm |
| Operating Temp. |
-45~70℃ |
| Storage Temp. |
-50~90℃，5~95%RH（no condensation） |
| Input Voltage |
9~50VDC |
| Working Current |
~600mA |
| Power |
<1W |
| Warranty |
1 year |
| Accessory |
1* 5V/1A power adapter 1*Ethernet cables |
| Network Transformer |
integrated |
