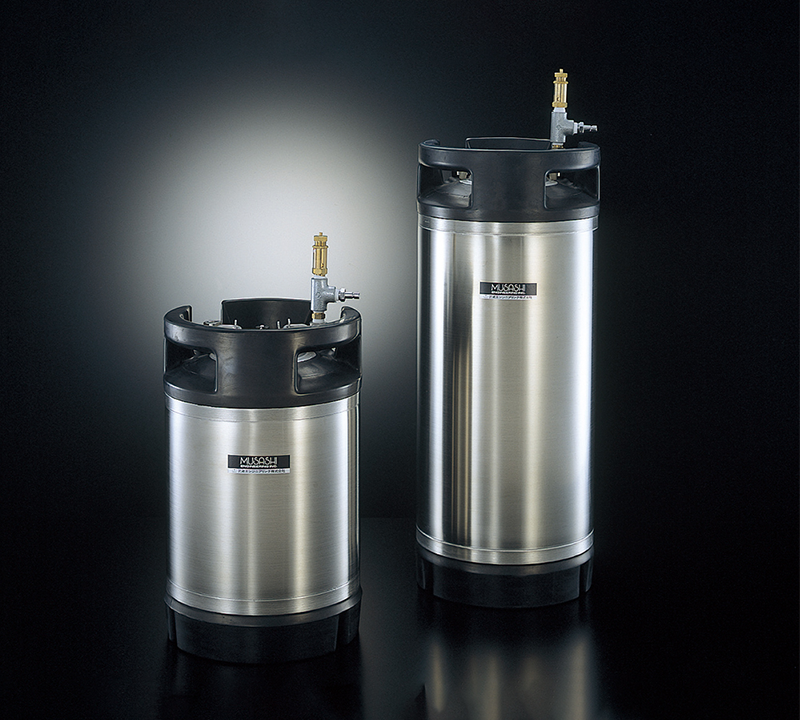

Gallon tank Musashi GAT-3G GAT-5G
- GAT-3G
- GAT-5G
- Simple tank designed specifically for directly pouring fluid in.
- Suitable for low pressure feeding of low to medium viscosity fluid.
- Lightweight and easy to move.
- The safety structure disables the lid to be opened when under pressure.
Gallon tank
＊The safety valve pressure is set at 0.2 MPa.

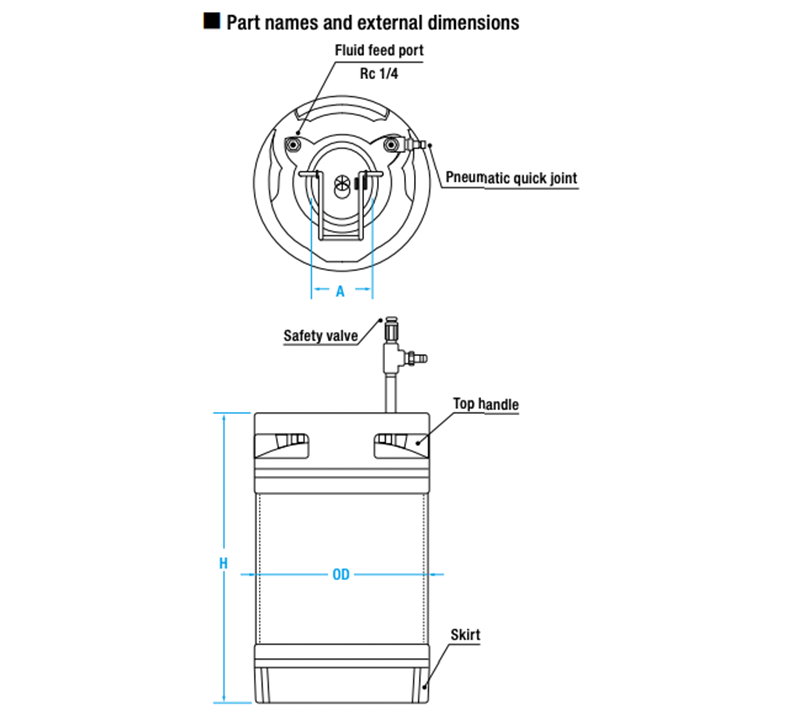

| Capacity | Model | External dimensions (mm) | Weight (kg) | Material | Pressure | Standard accessories | ||
| H | OD | A | ||||||
| 3 gallons (Approx. 11.5 L) | GAT-3G | 379 | φ229 | 82 | 3.7 | Wetted part: Stainless steel, Fluorine resin |
0.2 MPa | • Oring (Fluororubber) • Safety valve ＊ • Pneumatic quick joint |
| 5 gallon (Approx. 19 L) | GAT-5G | 565 | φ229 | 82 | 4.3 | |||
