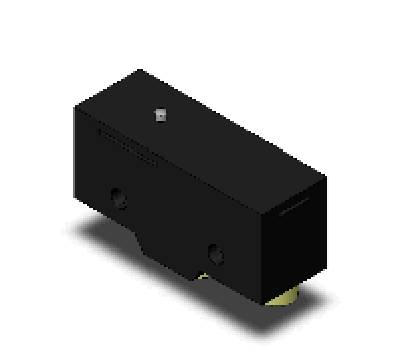

    General-purpose Basic Switch OMRON X-10G-B

    Pin plunger, General load General type, SPDT (Single-Pole, Double-Throw type), Rated through current 10 A, Screw terminal (M4)

    Actuator: Pin plunger
    Contact form: SPDT (Single-Pole, Double-Throw type)
    Terminal: Screw terminal (M4)
    Rated current: 10 A
    Degree of protection: IP00
    Ratings / Performance

    Actuator Pin plunger 2.3 dia.
    Stainless-steel plunger
    Contact form SPDT (Single-Pole, Double-Throw type)
    Ag
    Contact gap (standard value) 0.9 mm
    Terminal Screw terminal (M4)
    Load General load
    Rated current 10 A
    Ratings (DC) Non-Inductive load Resistive load: 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 10 A at 125 VDC, 3 A at 250 VDC
    Lamp load (NC): 3 A at 8 VDC, 3 A at 14 VDC, 3 A at 30 VDC, 3 A at 125 VDC, 1.5 A at 250 VDC
    Lamp load (NO): 1.5 A at 8 VDC, 1.5 A at 14 VDC, 1.5 A at 30 VDC, 1.5 A at 125 VDC, 0.75 A at 250 VDC
    Inductive load (NC): 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 7.5 A at 125 VDC, 2 A at 250 VDC
    Inductive load (NO): 10 A at 8 VDC, 10 A at 14 VDC, 10 A at 30 VDC, 6 A at 125 VDC, 1.5 A at 250 VDC
    Motor load (NC): 5 A at 8 VDC, 5 A at 14 VDC, 5 A at 30 VDC, 5 A at 125 VDC, 2 A at 250 VDC
    Motor load (NO): 2.5 A at 8 VDC, 2.5 A at 14 VDC, 2.5 A at 30 VDC, 2.5 A at 125 VDC, 1.5 A at 250 VDC
    Inrush current NC: 30 A max.
    NO: 15 A max.
    Ambient temperature -25 to 80 ℃ (with no freezing or condensation)
    Ambient humidity 35 to 85% RH

    Speed of permissible operation 0.1 mm/s to 1 m/s
    Permissible operating frequency Electrical: 20 operations / 1 minute max.
    Mechanical: 240 operations / 1 minute max.
    Contact resistance (Initial value) 15 mΩ max.
    Insulation resistance 100 MΩ min. (at 500 VDC)
    Dielectric strength Between each terminal of the same polarities: 1,500 VAC 50/60 Hz 1 min
    Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min
    Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
    Durability Electrical: 100,000 operations min.
    Mechanical: 1,000,000 operations min.
    Degree of protection IP00
    Degree of protection against electric shock Class I
    Proof tracking index(PTI) 175

    Operating Force (OF) Standard value 5 N max.
    Release Force (RF) Standard value 1.12 N min.
    Pre-Travel (PT) Standard value 0.9 mm max.
    Over-Travel (OT) Standard value 0.13 mm min.
    Movement Differential (MD) Standard value 0.18 mm max.
    Operating Position (OP) Standard value 15.5 to 16.3 mm
