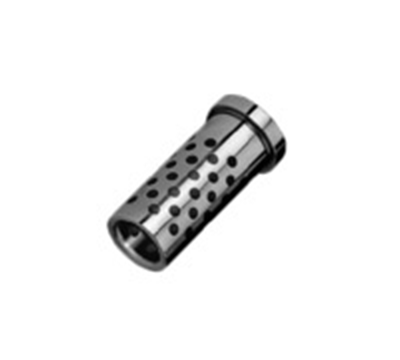

Guide bush, flush location head, self-lubricating
- Hasco Z1100W/l1xd1
- max. 200°C
- 2.0975

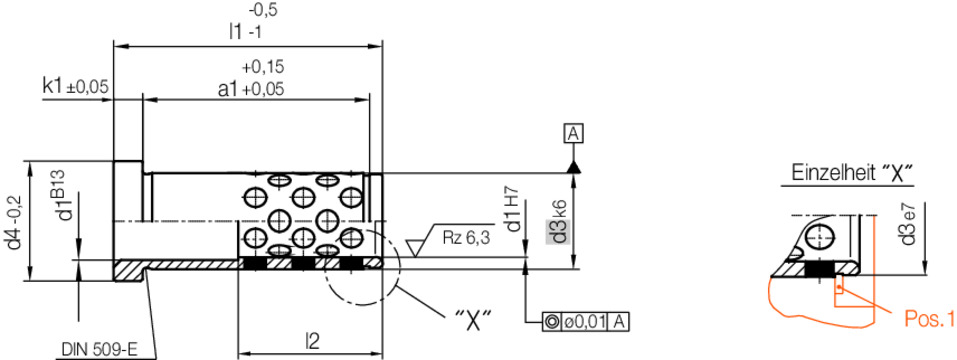

Guide bush, flush location head, self-lubricating
| Pos1 | k1 | a1 | l2 | d4 | d3 | l1 | d1 | Product |
|---|---|---|---|---|---|---|---|---|
| Z67/14x1 | 3 | 6,6 | - | 16 | 14 | 12 | 9 |
Z1100W/12x9
|
| Z67/14x1 | 3 | 11,6 | - | 16 | 14 | 17 | 9 |
Z1100W/17x9
|
| Z67/14x1 | 3 | 16,6 | - | 16 | 14 | 22 | 9 |
Z1100W/22x9
|
| Z67/14x1 | 3 | 21,6 | 20 | 16 | 14 | 27 | 9 |
Z1100W/27x9
|
| Z67/14x1 | 3 | 30,6 | 20 | 16 | 14 | 36 | 9 |
Z1100W/36x9
|
| Z67/14x1 | 3 | 40,6 | 20 | 16 | 14 | 46 | 9 |
Z1100W/46x9
|
| Z67/14x1 | 3 | 50,6 | 20 | 16 | 14 | 56 | 9 |
Z1100W/56x9
|
