Mold Parts

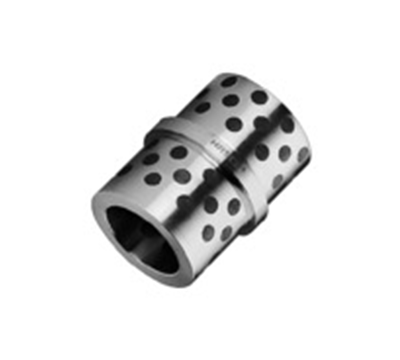

Guide bush, for ejector assembly, self-lubricating
- Hasco Z13W/l2xd1
- max. 200 °C
- 2.0975

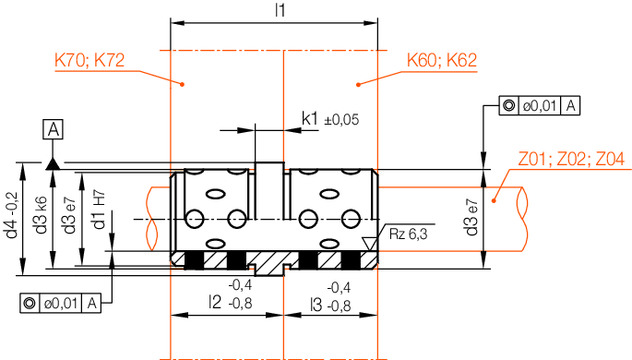

Guide bush, for ejector assembly, self-lubricating
| k1 | l3 | l1 | d4 | d3 | l2 | d1 | Product |
|---|---|---|---|---|---|---|---|
| 6 | 9 | 21 | 16 | 14 | 12 | 10 |
Z13W/12x10
|
| 6 | 9 | 26 | 16 | 14 | 17 | 10 |
Z13W/17x10
|
