Mold Parts

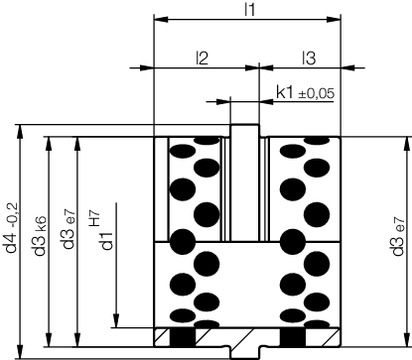

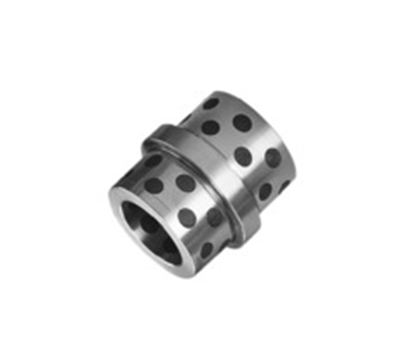

Guide bush, self-lubricating
| k1 | l1 | d4 | d3 | d1 | l2 | l3 | Product |
|---|---|---|---|---|---|---|---|
| 6 | 26 | 35 | 30 | 24 | 17 | 9 |
Z14W/24x17x9
|
| 6 | 29 | 35 | 30 | 24 | 17 | 12 |
Z14W/24x17x12
|
| 6 | 26 | 49 | 44 | 36 | 17 | 9 |
Z14W/36x17x9
|
| 6 | 39 | 49 | 44 | 36 | 22 | 17 |
Z14W/36x22x17
|
| 6 | 39 | 63 | 58 | 48 | 22 | 17 |
Z14W/48x22x17
|
| 6 | 49 | 63 | 58 | 48 | 27 | 22 |
Z14W/48x27x22
|
